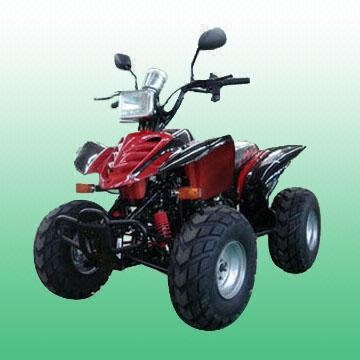

200cc ATV (GATV200-III)

Specifications

Prod Model:	GATV200-III

Product Description

Product size: 1, 585 x 980 x 1, 010mm
Wheelbase: 1, 110mm
Engine type: single cylinder, air-cooling, four-stroke
Start mode: electric
Power: 10. 0Kw/7, 500rpm
Max torque: 13.5N. m/6, 500rpm
Max speed: >=60kph
Mini ground clearance: 150mm
Dry weight: 150kg
Transmission mode: shaft
Break type (F/R): drum/drum
Climb degree: >=20 degrees
Tank capacity: 4L
Specification of tire:
Front-wheel drive: 19 x 7-8
Rear wheel: 18 x 9.50-8
Displacement: 196.98mL
Shift gear: four gear with reverse gear; manual clutch
Ignition mode: CDI
Loading capacity: 150kg
Engine oil: 1.0L
Packing dimensions: 1, 490 x 840 x 770mm
