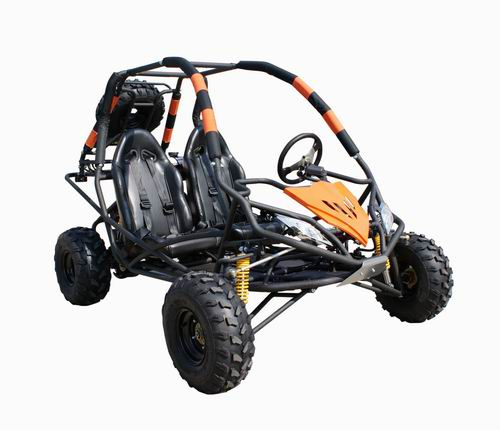

Home H&C Int'l Industrial Co., Ltd. 150CC EPA Go Kart Hc250gk-2
Specifications
| Prod Model: | HC150GK-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start-up: | Electric |
| Transmission: | Chain |
| Displacement: | 150CC |
| Certification: | EPA |
Product Description
EPA 150CC go kart, dune go kart1)DIMENSION
2280mm*1500mm*1480mm
Wheel base: 1314mm(51.73in)
Minimum ground clearance: 270mm(10.62in)
2)BASIC WEIGHT
Gross weight: 286KG
Net weight: 248KG
3)ENGINE
Engine Type: Strong Air cooled, single cylinder four stroke
Displacement: 149.6CC
Bore X stroke: 57.4X57.8mm
Compression ratio: 9.5: 1
Max power: 5.8kw/7500
Rating power: 5.4kw/7000
Max torque: 7.6nm/6000rpm
Ignition: C. D. I
Starting system: Electric
Lubricate type: Compressive stress and Splash lubrication
4)TIRE
Type: Tubeless
Front Size: 23*7-8
Rear size: 20*10-10
5)SUSPENSION
Front: Double A-arm
Rear: Swing arm
6)BRAKE
Rear brake type: Disc brake
7)ELECTRICAL
Battery: 12V 10Ah
Qty/20' FCL: 8PCS
Qty/40' FCL: 20PCS
Qty/40' HQ: 30PCS
