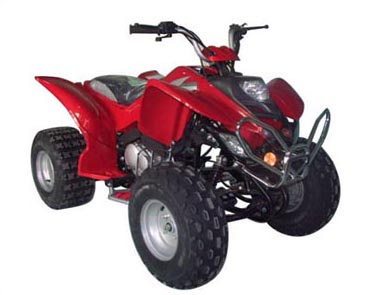

Home Yongkang Hengli Electronics Co., Ltd. 150CC ATVs /QUADs (HL-A417)
| Prod Model: | HL-A417 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: | Gas / Diesel |
| Certification: | CE |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Automatic |
| Displacement: | 150CC |
Product Description
Key Specifications/Special Features:Parameter of Engine
Engine Model 162FMJ
Engine Style Single Cylinder, Air-cooled, 4-stroke
Bore * Stroke: 62*57.8(mm *mm)
Ignition: C. D. I.
Lubrication Pressure/ Splash
Max. Power 9.5/8000+/-150(Kw/r/min)
Max. Torque 10.5/6000+/-150(N. M/r/min)
Impression Ratio 8.8: 1
Starting Type Electric
Max. Speed 55(Km/H)
Oil Consumption ≤ 365(g/Kw? H)
Max. Noice 80(dB)
Clutch
Transmission 5 speed, Rotary 3 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension 1500*850*960(L*W*H mm)
Wheel Base 1050(mm)
Gross Weight 145(Kg)
Dry Weight 125(Kg)
Transmission Type Chain
Tyre and Rim F.: 19*7-8 / R.: 18*9.50-8
Brake Style F. Drum / R. Dick
Absorber Style F.: Independent Hanging / R.: Middle Absorber
Displacement: 149.5ml
Oiltank Capacity 4.5(L)
Climbing Ability ≥ 25o
Max. Load 95(Kg)
Packing Vol, 1480*835*760(L*W*H mm)
Container Capacity: 66Unit/40FT; 33Unit/20FT
Zhejiang yongkang hengli electronics Co., Ltd. Mainly dedicated to manufacture pocket bike, mini chopper, ATV, dirt bike, electric scooter, gasoline scooter and other sports equipments on the basis of modern plants, advanced production equipments; Perfect testing methods and high qualitystaff. Since our foundation, we devoted ourselves to developing new products and improving their qualities. And we have insisted on the policy of "quality first and credit above all", all our products are made under ISO9001: 2000 quality control system with CE, GS approval. Now we have established stable business relationship with the importers or wholesalers from many countries, the products cover Europe, South Africa, north America and south-eastern.
We would like to cooperate with you at sincerity and build upa brilliant tomorrow together. Welcome all customers from home and abroad contact us by email, telephone or presence personally.
We would like to cooperate with you at sincerity and build upa brilliant tomorrow together. Welcome all customers from home and abroad contact us by email, telephone or presence personally.
