Specifications
Prod Model: |
ATV125 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Power: |
>1000W |
Certification: |
ISO9001 |
Condition: |
New |
Displacement: |
125cc |
Brand: |
Odes |
Product Description
Jinan Shanglong International Trade Co., Ltd. is located in Jinan, China. Our company specializes in exporting ATV, UTV, motorcycle and electric vehicle.
Since the establishment of our company in 2003, we have devoted a significant amount of time and energy to research and develop products. Until now, we have got the certification of EEC, EPA, DOT, etc.
In production, we perform strict standards
to make sure that no unqualified products flow into the public market.We always pursue consumerism as our basic rule of servicing customers.Our products are attracting more and more customers by new style and high quality.
Our company insists on the theory of "To persist in quality;To develop with sincerity". We are constantly looking for opportunities to build new business relationships with companies from all over the world.
If you are
interested in any of our products, please do not hesitate to contact us. Our qualified staff will do their utmost to supply you with first-class products and service.

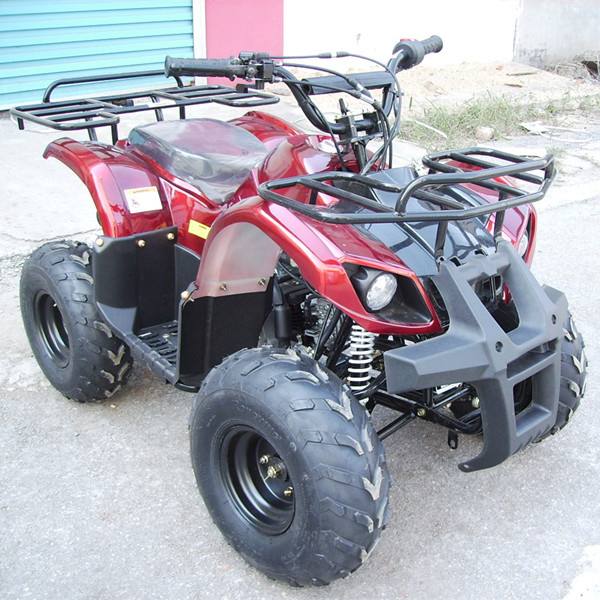

Configuration of 125cc ATV
ENGINE |
Certification | EPA CE approved |
Engine type | Air cooled, 4-stroke, single cylinder, chain drive |
Displacement | 124cc |
Horse Power | 5.0kw(8000r/min) 6.7HP |
Valve Configuration | OHV |
Compression ratio | 8.0:1 |
FUEL SYSTEM |
Fuel Delivery System | Carburetor |
Choke System | Manual Choke |
Fuel capacity | 2.8L(0.75 Gallon) |
DRIVETRAIN |
Driveline Type | 2WD |
Final Drive | Chain-drive |
Transmission | Automation |
Gear Selection | Forward & Reverse Single Speed |
ELECTRICAL SYSTEM |
Forward Lights | Headlights-High & Low Beam |
Rear Lights | Brake Lights |
Starting system | Electric start |
Ignition system | C.D.I |
SUSPENSION / BRAKES |
Suspension Front/Rear | Double A-Arm Independent Shock /Single shock swingarm |
Brakes Front/Rear | Drum/Hydraulic Disk |
TIRES |
Front Tread | 665 mm(26.2 in) |
Rear Tread | 630 mm(24.8 in) |
Front & Rear tire size | 16x8-7 |
MISC |
Top speed | 45km/h 28 (MPH) |
Loading information | 36 units/20″;81 units/40″; 108 units/40HQ |
Manufacturers Defect Warranty | 6 Months |
Dry weight | 93kg(204.6lbs) |
Shipping weight | 120 kg (264.0lbs) |
Fuel consumption | 2.0L/100km |
Wheelbase | 860 mm(36.2 in) |
Vehicle dimension (L×W×H) | 1420 x830 x 910mm (55.9x32.7x35.8 in ) |
Packing size | 1310x750x630mm (51.6x29.5x24.8in) |
Ground clearance | 95 mm (3.7 in) |
