Specifications
Prod Model: |
KG150-5C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Normal Color: |
Blue/Black/Red/Silver |
Brand: |
OEM or ODM |
Type: |
Straddle |
Displacement: |
126-250CC |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Condition: |
New |
Braking Mode: |
Front and Rear Drum Brake |
Product Description

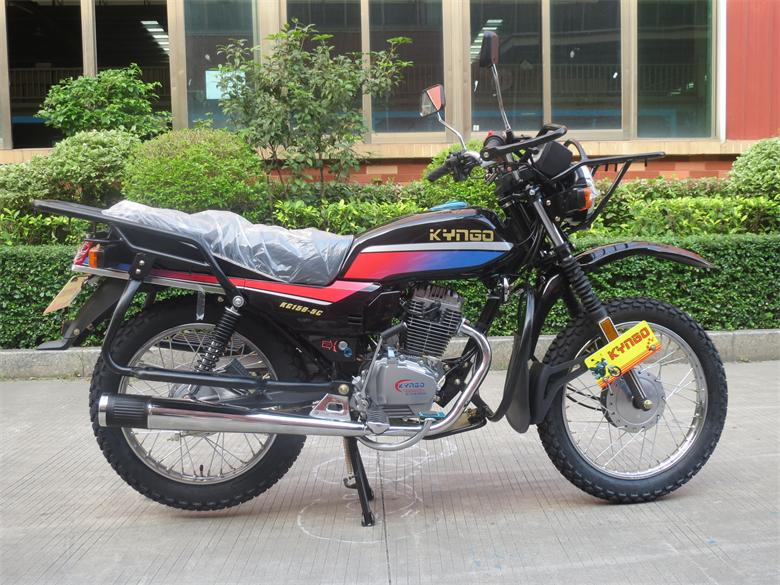

125cc /150cc WY off road street motorcycle with carrier racksTechnical Data: |
|
Engine |
|
Displacement(ml): | 150ml |
Engine Type: | 162FMJ,1- cylinder,air-cooled, Four-stroke |
Compression Ratio: | 9.0:1 |
Max. Power (kw/r/min) | 9.1/7500 |
Max. Torque (N.m/r/min): | 11.0/6000 |
Max. Speed (Km/h): | ≥90 |
Lubrication: | Pressure ,splash |
Clutch Type: | Multiplate wet clutch |
Ignition: | CDI |
Starting System: | Electric/Kick start |
Transmission System: | Chain drive |
Front Brake: | disc brake |
Rear Brake: | drum brake |
Front Tire: | 3.00-18 |
Rear Tire: | 3.25-18 |
Battery: | 12V7A |
DIMENSIONS |
|
L X W X H (mm): | 2040×780×1120 |
Seat Height (mm): | 760 |
Wheelbase (mm): | 1300 |
Min. Ground Clearance (mm): | 310 |
Max. Permissionable Weight (kg): | 150 |
Rider Capacity: | 2 Persons |
Dry. Weigth (kg): | 125 |
Engine Oil (L): | 1.1 |
Fuel Tank Capacity (L): | 13 |
loading qty:skd packing | 105sets/40HQ |
Main Instructions:
1. 150cc vertical engine, Single Cylinder, 4-stroke, Air Cooling
2. Normal shock absorber
3. Spoke rim,Deep tine off-road tires
4. Front & rear drum brake
5. Round headlight, general turn light
6.standard shock absorber,with front and back steel carrier
7.high quality,competitive and good delivery
8.We support OEM, ODM, SKD, CKD or whole parts form and support customers' Logo and stickers.
