Specifications
Prod Model: |
QW-ATV-08D |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Manual |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
250CC |
Maximum Speed: |
>75 km/h |
Structure: |
off Road |
Brake Type: |
Drum Brake & Hydraulic Disc Brake |
Product Description

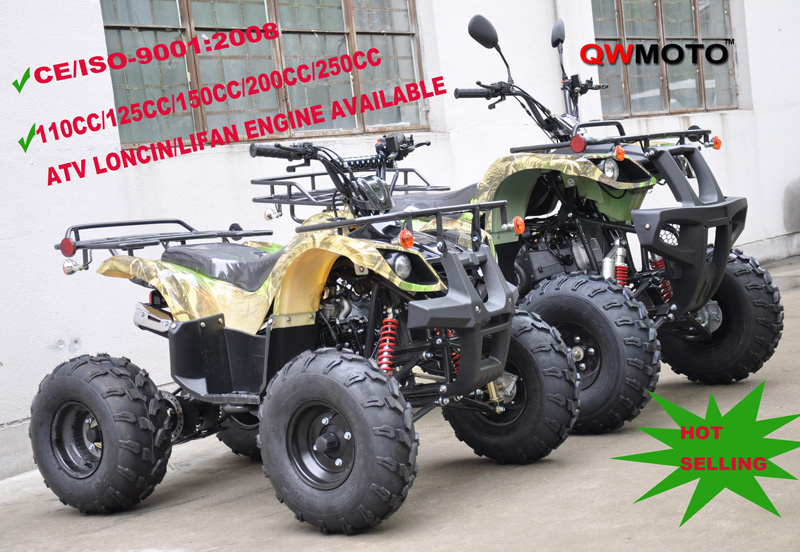

125CC 150CC/200CC/250CC ATV Quad CE
Model.: QW-ATV-08D
Engine: 125CC/150CC/200CC/250CC Single cylinder, 4 stroke, air cooled
Starting Method: Electric Start
Ignition Mode: CDI
Fuel Tank Capacity: 4.0L (METAL TANK + CAP)
Fuel: Straight Unleaded Petrol
Transmission: 4 FORWARD GEARS & REVERSE
Drive System: Chain
Throttle Control: Thumb throttle (screw restrictable to limit max throttle)
Suspension Front: Dual A arm spring shocks
Rear: Large rear shock
Maximum Speed: 80km/hr+
(Depends upon road conditions & rider weight)
Front Brakes: DRUM BRAKES
Rear Brakes: Drilled Disc HYDRAULIC BRAKE
Maximum Load: 150kg
Wheel Size Front: AT 19 x 7 - 8 Rear: AT 18 x 9.5 - 8
Rider Capacity: 1 person
Dimensions: (L x W x H) BOX: 1470 x 840 x 800 (mm)
BIKE: 1850 x 1070 x 1040 (mm)
Seat Height: 750mm
Weight Gross: 155kg Net: 135kg
Conveyance Qty:
20"GP: 22pcs, 40"HQ: 63pcs
Colors available: Red/black/green/blue/yellow etc...
