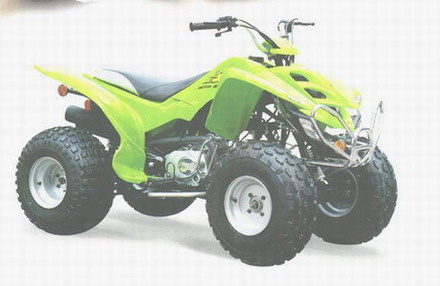

Product Description
Engine Type Single Cylinder, Air cooled, 4-StrokeTransmission System: Shaft Drive
Bore× Stroke(mm): 52.4X49.5
Displacement(mm): 107
Max Power(Kw/r/min): 5.5/8000
Max Torque: 6.5/5750
Starting system: Electric
Transmission: 4-Speed, Semi-automatic
Seat height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance(mm): 100
Wheel Base(mm): 1040
Brake(Front/Rear): Drum/Drum
Front Tyre: 19X7-8/2.9 Psi
Rear Tyre: 18X9.5-8/2.9 Psi
Ignition Type: CDI
Fuel Tank(L): 7.8
Battery: 12V-9Ah
Parking brake: Mechanical Lock
Pay load(Kg): 95
Net weight(Kg): 130
Rider capacity: 1 Person
L*W*H: 1540*860*950
LONGTING Company is equipped with the most advanced techniques of developing and manufacturing CROSSBIKE and ATV, one advanced assembling and packing process assembly line, two specific testing assembly lines and devices. The products are manufactured strictly by the level of ISO9001 and the annual output is 50000 sets. The company is one of the professionally export-oriented enterprises in Chongqing. Its core markets have been widely promoted in the USA, the UK, Spain, France, Germany, Australia and South Africa, etc. The series of ATV are ATV50, ATV90, ATV110, ATV125, ATV150, ATV200 and ATV250, as well as CROSSBIKE including PY50, PY80, PY90 and PY110, GK250. Currently, the company is developing ATV with larger displacement.
