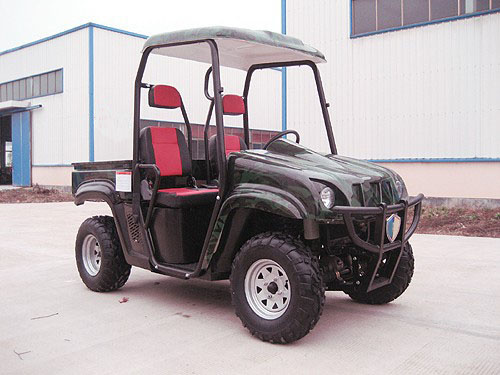

Utility Vehicle (TY-UV500cc)

Specifications

Prod Model:	TY-UV500cc

Product Description

Product dimensions: 2,690 X 1,280 X 1960mm
Minimum turning radius: 4650mm
Transmission: C.V.T and P/R/N/L/H
Wheelbase:1820mm
Wheel span: (a) Fr:1036mm (b) Re:1040mm
Brake type: F: dual disc brake R: dual disc brake
Minimum ground clearance:195mm
Shaft drive
4X4 and 4X2 switchable
4-wheel Independent suspension
Engine specifications:
Type: liquid-cooled, four-stroke and SOHC
Bore X stroke: 87.5 X 82mm (3.44 X 3.23 inches)
Displacement: 493 ml
Starting mode: electric and recoil starter
Cylinder arrangement: forward-inclined single-cylinder
Capacities:
Fuel tank: 22.0L
Oil consumption for 100 kilometers:9.8L
Battery: 12V
Maximum speed: 70kph
Maximum loading capacity: 500kg
Net weight:550kg
20??ft : 8PCS
40??HQ:18PCS
