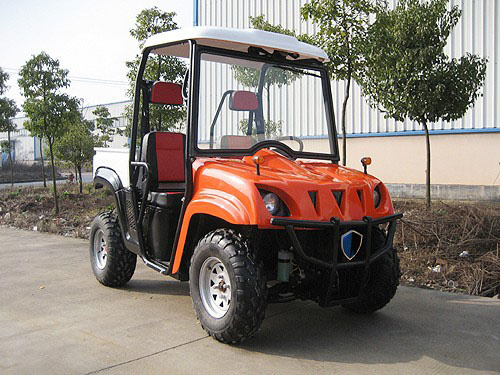

Utility Vehicle (TY-UV300cc)

Specifications

Prod Model:	TY-UV300cc

Product Description

Dimensions
Product dimensions (mm): 2630*1230*1890
Wheelbase (mm): 1800
Wheel span (mm): A) fr: 1058 b) re: 1070
Ground clearance(mm): 183

Engine
Type: Single cylinder, 4-stroke, liquid-cooled
Bore*stroke(mm): 76*60
Displacement: 278ml/22HP
Compression ratio: 10: 1
Starting: C. D. I
Transmission: Automatic clutch(d/n/r)
Shaft drive
Capacities
Turning radius (mm): 3700
Fuel tank: 20. 0L
Battery: 12V
Max speed: 53km/h

Weight
Max load capacity: 500kg
Net weight: 540kg
Gross weight: 600kg
Packing size:
20FCL 2300*1400*1100mm
40hq 2300*1300*1200mm
Conveyance:
Qty/20'fcl: 8PCS qty/40'hq: 18PCS
