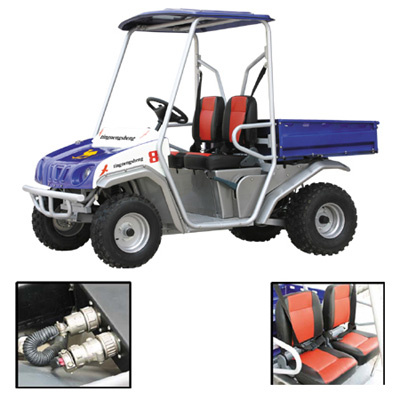

Home Zhejiang Tyco Scooter Manufacture Co., Ltd. Utility Vehicle (TY-UV02)
Specifications
| Prod Model: | TY-UV02 |
|---|
Product Description
Dimensions1. Product dimensions(mm): 2600*1260*1890
2. Wheelbase(mm): 1960
3. Wheel span(mm): A)fr: 1100 b)re: 1200
4. Ground clearance(mm): 240
Engine
5. Type: Single cylinder, 4-stroke, liquid-cooled
6. Displacement: 150CC; 250CC; 500CC; 650CC
7. Compression ratio: 10: 1
8. Starting: C. D. I
9. Final drive: China driven; Shaft driven; 4*4 driven
Capacities
10. Turning radius(mm): 3500
11. Fuel tank: 20. 0L
12. Battery: 12V
Weight
13. Max load capacity: 350kg(770lb)
Net weight: 620kg(1364lb)
Conveyance:
14. Qty/20'fcl: 8PCS
Qty/40'hq: 30PCS
