Home Zhejiang Beiniao Electric Scooters Co., Ltd. TUV Electric Mobility Scooter 410A-H
TUV Electric Mobility Scooter 410A-H
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | 410A-H |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | TUV Electric Mobility Scooter 410A-H |
| Max Forward Speed: | 12km/H |
| Max Backward Speed: | 6km/H |
| Braking Distance: | 2m |
| Max Climbing Slope: | 12 Degrees |
| Ground Clearance: | 135 Mm |
| Loading Capacity: | 120kgs |
| Turning Radius: | 1.72m |
| Range Per Change: | 35km |
| Motor Rated Power: | 800W |
Product Description

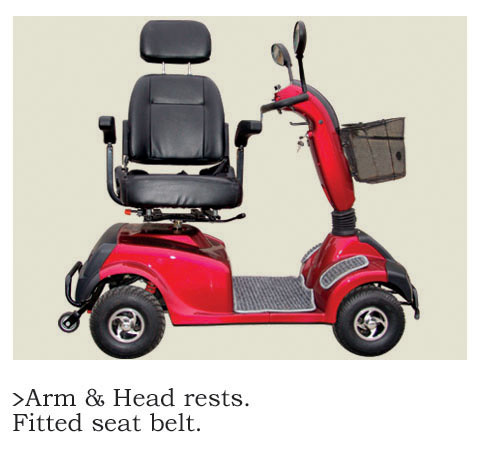

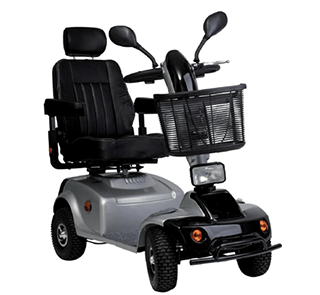

TUV Electric Mobility Scooter 410A-Hadjustable tiller at any angle , pass TUV
Overall Dimentions (LXWXH) 1400 x630x1230mm
Max Forward Speed 12 km/h
Max Backward Speed 6km/h
Braking Distance(≤) 2m
Max Climbing slope 12 degrees
Ground Clearance 135mm
Loading Capacity 120kg
turning radius 1.72m
Range per Change 35km
Front Tire 11"
Rear Tire 11"
Motor Rated Power 800W
Controller PG S-Drive 120A
Charger 24V 5A
Batteries(lead acid) 12V/45AH x 2 (Taiwan Long battery )
Braking System Electric Regenerative Braking
Seat Type
Net Weight with Battery 107kg
Gross Weight 120kg
Battery Weight(2pcs) 29.7kg
Packing Size: 1480x680x860 mm
Container packing 20GP : 36units
40GP :75units
40HQ : 88units
