CE Electric Mobility Scooter (410A-H)
Price: |
US $ 790-824/Piece
|
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T |
Specifications
Prod Model: |
410A-H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Electric Mobility Scooter (410A-H) |
Max Forward Speed: |
8.3km/H |
Max Backward Speed: |
4-6km/H |
Braking Distance: |
2m |
Max Climbing Slope: |
12 Degrees |
Ground Clearance: |
135 Mm |
Loading Capacity: |
120kgs |
Turning Radius: |
1.72m |
Range Per Change: |
30km |
Motor Rated Power: |
450W |
Product Description
CE Electric Mobility Scooter (410A-H) Feature:

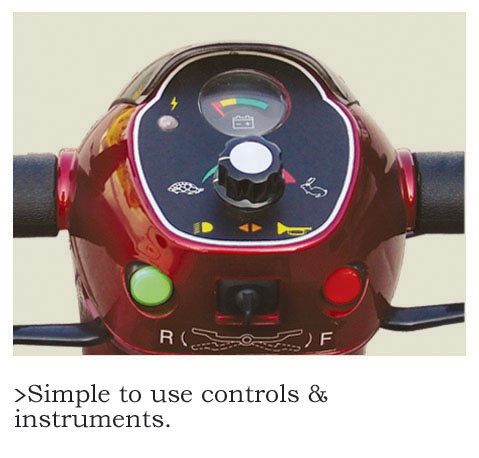

1.Simple to use controls & instrument.
2.Quick & easy folding mechanism.

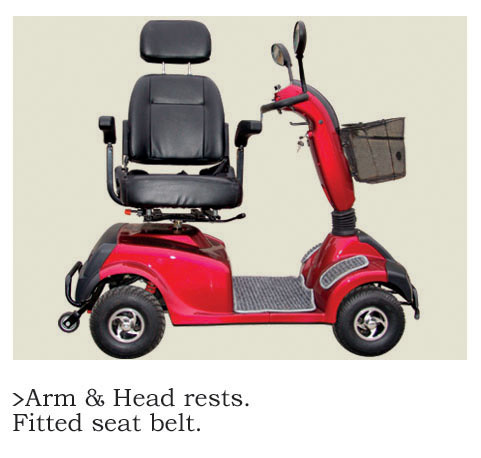

3.Arm & Head rests. Fitted seat belt.

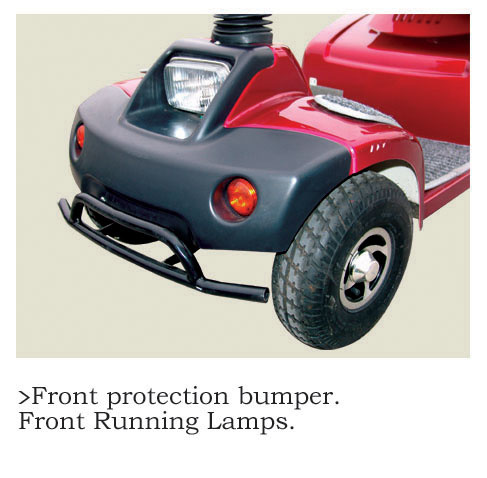

4.Front protection bumper. Front Running Lamps.
5.Comfortable and Convenient Adjustable Seat.
6.Anti-Tip Safety rear wheels. Rear Running Lamps.Overall Dimentions (LXWXH) | "1400 x630x1230mm " |
Max Forward Speed | 8.3km/h |
Max Backward Speed | 4-6km/h |
Braking Distance(≤) | less than 2m |
Max Climbing slope | 12 degrees |
Ground Clearance | 135 mm |
Loading Capacity | 120kgs |
turning radius | 1.72m |
Range per Change | 30km |
Front Tire | 10" |
Rear Tire | 10" |
Motor Rated Power | 24V 450W |
Controller | PG S-Drive 70A(or Curtise 70A 1212-2401) |
Charger | 24V 4A |
Batteries(lead acid) | 12V/38AH x 2 Lead acid (45AH) |
Braking System | Electric Regenerative Braking & Hand brake |
| |
Net Weight with Battery | 85kgs |
Gross Weight | 104kgs |
Battery Weight(2pcs) | 27.6kgs |
Packing Size: | 1480x680x860mm |
Container packing | 20GP : 36 |
| 40GP :75 |
| 40HQ : 88 |
