8" Electric Mobility Scooter (D408A)

8
Price: US $ 490-590/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T

Specifications

Prod Model: D408A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: 8" Electric Mobility Scooter D408A
Overall Dimentions: 990 X 500 X 850 Mm
Max Forward Speed: 8km/H
Max Backward Speed: 4km/H
Braking Distance: 1.8m
Max Climbing Slope: 12 Degrees
Ground Clearance: 50 Mm
Loading Capacity: 110kgs
Turning Radius: 0.98m
Range Per Change: 16km
Climbing Capability: 12??
Load Capacity: 100-200kg
Accessories: Basket
Certification: EEC
Folded: Folded
Voltage: 24V

Product Description

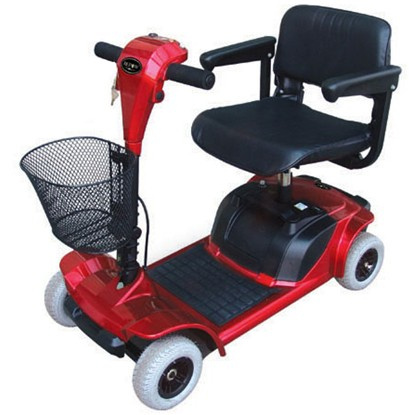

8" Electric Mobility Scooter (D408A)

Features:
>Adjusting Handlebar Assembly. Handlebar Assembly Lock.

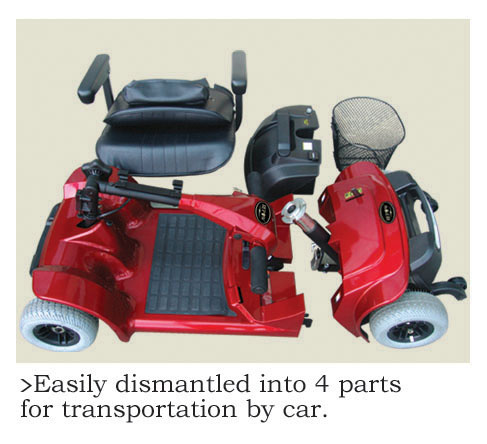

>Easily dismantled into 4 parts for transportation by car.

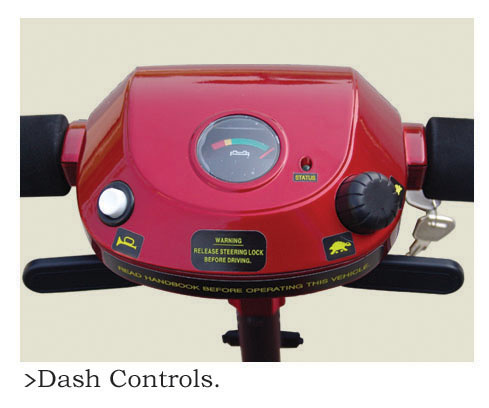

>Dash Controls.

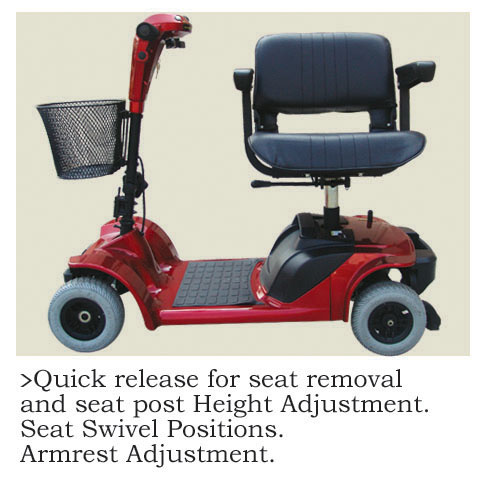

>Quick release for seat removal and seat removal and seat post height Adjustment. Seat Swivel Positions. Armrest Adjustment.


Overall Dimentions (LXWXH) "1100 X 500 X 850mm"
Max Forward Speed          6.4km/h
Max Backward Speed         3.2km/h
Braking Distance(≤)         1.8m
Max Climbing slope          10 degrees
Ground Clearance            60 mm
Loading Capacity            110kgs
turning radius                  1.45m
Range per Change           16km
Front Tire                  8"
Rear Tire                   8"
Motor Rated Power          180W
Controller                 PG S-Drive 45A (or Curtise 45A 1212-2401 )
Charger                    24V 2A
Batteries(lead acid)        12V/12AH X 2
Braking System             Electric Regenerative Braking


Net Weight with Battery     50kgs
Gross Weight                     54kgs
Battery Weight(2pcs)        8.5kgs
Packing Size:              1300 X 560 X 520 mm
Container packing          20GP : 68units

40GP :144units

40HQ : 144units
