Specifications
Prod Model: |
GP1R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ignition: |
Cdi |
Transmission: |
Automatic |
Starting System: |
Electric / Kick |
Front Brake: |
Disc |
Rear Brake: |
Drum |
Colors: |
Black, Blue, Red |
Fuel Tank Capacity: |
5-8L |
Maximum Loading Capacity: |
≥120kg |
Engine: |
4 Stroke |
Certification: |
EEC |
Max Speed: |
>50km/h |
Displacement: |
125CC 150CC |
Product Description
UM is the registered brand of the United Motors Group. UM has become a multinational organization incorporating R&D, design, sales, marketing and after sale service of motorcycles.
1. Powerful 4-stroke engine.
2. Fully automatic box.
3. Completely flat floor so you never get wet.
4. Comfortable seating for two people.
5. Large trunk under the seat.
6. Stikers classic design with modern.
7. Aluminum wheel.
8. Dashboard complete.
|

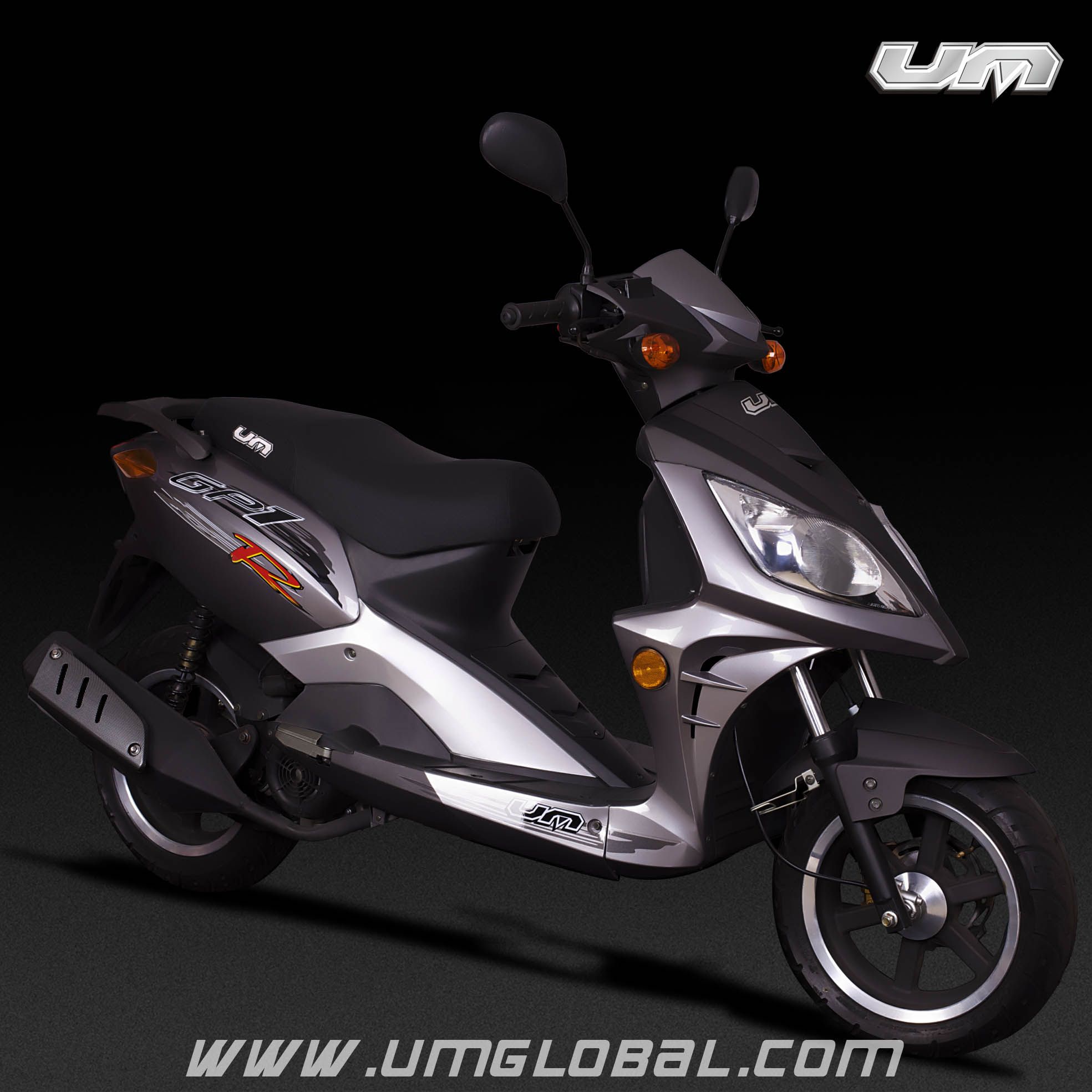

GP1R |
TYPE |
GP1-R 125 |
GP1-R 150 |
ENGINE TYPE |
Single Cylinder, 4 Stroke, SOHC |
Single Cylinder, 4 Stroke, SOHC |
ENGINE DISPLACEMENT(cc. ) |
124.6 cc |
149.6 cc |
BORE AND STROKE (mm) |
52.4 X 57.8 |
57.4 X 57.8 |
ENGINE POWER(Kw / r/min) |
5.6 /(7500± 5%) |
6.8 /(7500± 5%) |
TORQUE (N. m/r/min) |
5.2 /(7000± 5%) |
8.3 /(6000± 5%) |
COMPRESSION RATIO |
9.2: 1 |
9.2: 1 |
COOLING |
Forced air |
Forced Air |
IGNITION |
CDI |
CDI |
TRANSMISSION |
Automatic |
Automatic |
FINAL DRIVE |
V-Belt |
V-Belt |
STARTING SYSTEM |
Electric / Kick |
Electric / Kick |
FUEL DELIVERY |
Carburetor |
Carburetor |
FRONT SUSPENSION |
Telescopic Fork |
Telescopic Fork |
REAR SUSPENSION |
Single Hydraulic Shock |
Doble Amortiguador Hidraulico |
FRONT BRAKE |
Disc |
Disc |
REAR BRAKE |
Drum |
Drum |
FRONT TIRE |
3.5-10 |
120/70-12 |
REAR TIRE |
3.5-10 |
120/70-12 |
DIMENSIONS (LxWxH) |
1820 X 675 X 1050 |
1860 X 675 X 1140 mm |
SEAT HEIGHT |
760 mm |
760 mm |
WHEELBASE |
1300 mm |
1300 mm |
FUEL CAPACITY |
4.5 L - 1.2 Gal (US) |
5.6 L - 1.48 Gal (US) |
DRY WEIGHT |
95 Kg |
106 kg |
COLORS |
Black, Blue, Red |
