Specifications
Prod Model: |
DSR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ignition: |
Cdi |
Transmission: |
5 Speed With Clutch |
Front Brake: |
Disc 265 Mm |
Rear Brake: |
Drum |
Colors: |
Black, Blue, Red, Orange |
Certification: |
EEC |
Starting System: |
Kick Start and Electric Start |
Engine: |
4 Stroke |
Displacement: |
125CC 175CC 200CC |

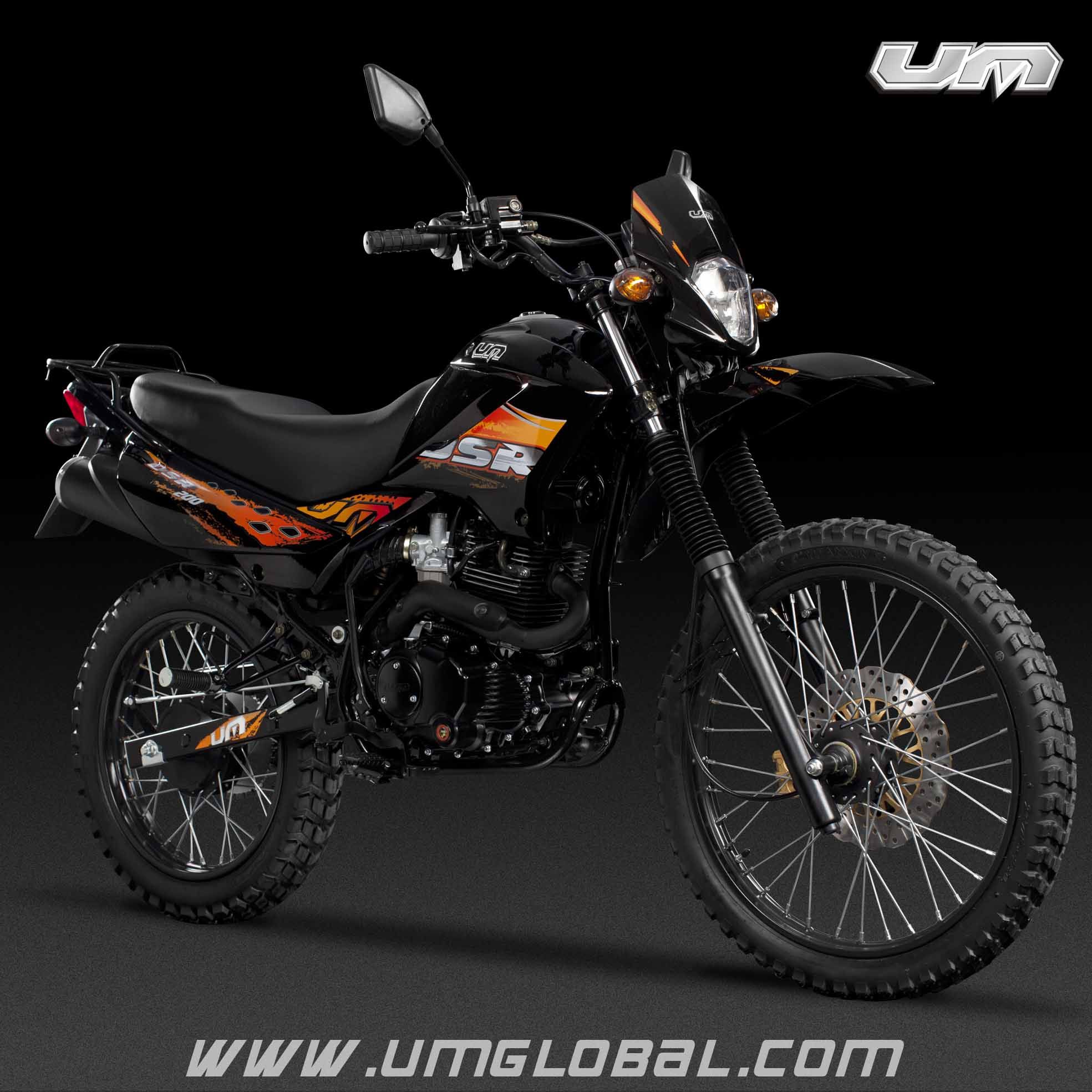

Product Description
UM is the registered brand of the United Motors Group. UM has become a multinational organization incorporating R&D, design, sales, marketing and after sale service of motorcycles.
1. Powerful 4-stroke engine with counter balancer.
2. 5-speed transmission.
3. Electric Start.
4. Suspencion long haul.
5. Rear shock.
6. Powerful front disc brake.
7. Comfortable chair for long journeys.
8. Brake caliper 2-piston.
9. Strong rear rack.
10. Modern side covers.
|
DSR |
TYPE |
DSR 125 |
DSR 175 |
DSR 200 |
ENGINE TYPE |
Single Cylinder, 4 Stroke, SOHC |
Counter Balance, Single Cylinder, 4 Stroke, OHV |
Counter Balance, Single Cylinder, 4 Stroke, OHV |
ENGINE DISPLACEMENT(cc. ) |
125cc |
175 cc |
196.4 cc |
BORE AND STROKE (mm) |
56.5 X 49.5 |
62 X 58 |
67 x 55.7 |
ENGINE POWER(Kw / r/min) |
8.3/(9000± 5%) |
10.8/(8000± 5%) |
10.8/(8000± 5%) |
TORQUE (N. m/r/min) |
8.6/(8000± 5%) |
13.0/(6500± 5%) |
13.0/(6500± 5%) |
COMPRESSION RATIO |
9.2: 1 |
COOLING |
Air Cooled |
IGNITION |
CDI |
TRANSMISSION |
5 Speed With Clutch |
FINAL DRIVE |
Chain |
STARTING SYSTEM |
Electric / Kick |
FUEL DELIVERY |
Carburetor |
FRONT SUSPENSION |
Telescopic Fork |
REAR SUSPENSION |
Monoshock - Swingarm With Single Adjustable Shock Absorber |
FRONT BRAKE |
Disc 265 mm |
REAR BRAKE |
Drum |
FRONT TIRE |
2.75-21 |
2.75-21 |
2.75-21 |
REAR TIRE |
4.60-18 |
4.60-18 |
4.60-18 |
DIMENSIONS (LxWxH) |
2075 X 780 X 1320 MM |
SEAT HEIGHT |
890 MM |
WHEELBASE |
1352 MM |
FUEL CAPACITY |
14.0 L - 3.7 Gal (US) |
DRY WEIGHT |
122 kg |
COLORS |
Black, Blue, Red, Orange |
