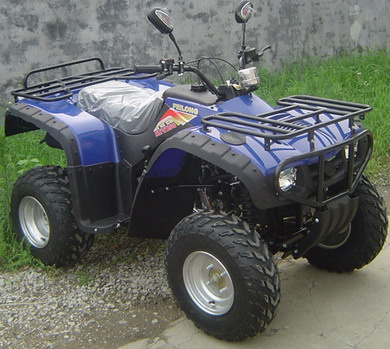

Home Atv Machinery Co., Ltd. FLZ250CC ATV
Specifications
| Prod Model: | ATV0004 |
|---|
Product Description
Overall Dimension (LxWxH) 1940x1050x1150mmProper Mass of Empty Vehicle 230kg
Max speed ≥70km/h
Climbing Ability ≥20
Wheelbase 1230mm
Ground clearance 165mm
Specification of Front Wheel 23x7-10
Specification of Rear Wheel 22x10-10
Type of Engine 4-stroke, single cylinder,
Water Cooling
Cylinder Bore x Stroke 72x60mm
Efficient Capacity 244. 3ml
Rated Power and Rotate Speed 10. 5KW/6000r/min (14. 3HP)
Max Torque and Rotate Speed 17. 6N. M/5500r/min
Compressing Ratio 10: 1
Transmission 2WD, V-belt automatic(High speed, low speed, neutral, reverse)
Gear ratios High speed: 4. 37 Low speed: 8. 77 Reverse: 6. 3
Starting System Electrical Starting
Fuel tank 12L
