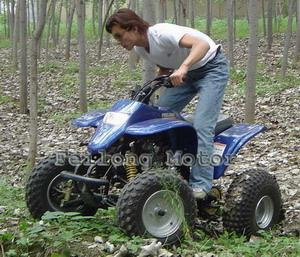

Home Atv Machinery Co., Ltd. FLZ200CC 250CC ATV
Specifications
| Prod Model: | ATV0006 |
|---|
Product Description
Overall Dimension (LxWxH) 1740x1100x1100mmProper Mass of Empty Vehicle 190kg
Max speed ≥65km/h
Climbing Ability ≥15
Distance between axles 1090mm
Distance between front wheels 940mm
Distance between rear wheels 950mm
Ground clearance 150mm
Specification of Front Wheel 21X8-10
Specification of Rear Wheel 22X11-8
Type of Engine 4-stroke, single cylinder
Cylinder Bore x Stroke 69x53mm
Efficient Capacity 198ml
Rated Power and Rotate Speed 10. 8KW/8000r/min
Max Torque and Rotate Speed 13N. M/7000r/min
Compressing Ratio 9. 2: 1
Gearshift Mode Five Speed/shaft drive/reverse
Starting System Electrical Starting
Cooling System Air Cooling
Fuel tank 7. 5L
