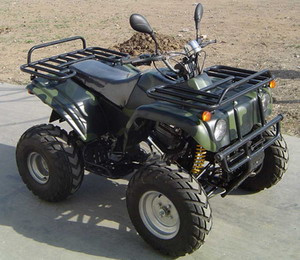

Home Atv Machinery Co., Ltd. FL250CC 300CC ATV
Specifications
| Prod Model: | ATV0003 |
|---|
Product Description
Overall Dimension (LxWxH) 1740x1100x1100mmProper Mass of Empty Vehicle 243kg
Max speed ≥65km/h
Climbing Ability ≥20
Distance between axles 1090mm
Distance between front wheels 810mm
Distance between rear wheels 850mm
Ground clearance 150mm
Specification of Front Wheel 22x8-10
Specification of Rear Wheel 22x10-8
Type of Engine 4-stroke, double cylinder
Cylinder Bore x Stroke 53x53mm
Efficient Capacity 233. 8ml
Rated Power and Rotate Speed 12. 1KW/8500r/min (16. 5HP)
Max Torque and Rotate Speed 15. 9N. M/6000r/min
Compressing Ratio 9. 2: 1
Gearshift Mode Five Speed/shaft drive/reverse
Starting System Electrical Starting
Cooling System Oil Cooling
Fuel tank 7. 5L
Front/Rear brake DISC/DISC
