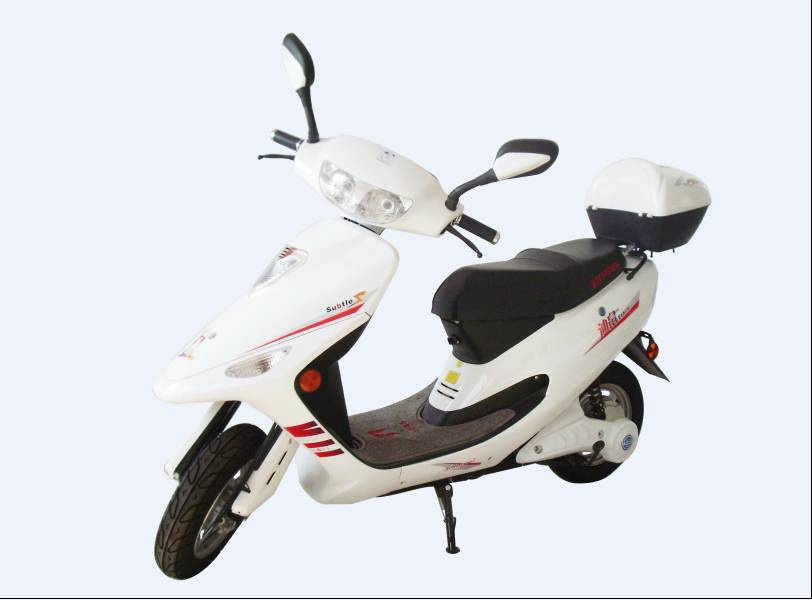

Electric Motorcycle (MTM204Z)

Specifications

Prod Model:	MTM204Z

Product Description

Specification
Batteries: Lead-acid 48V20Ah
Motor: 500W, 350W brushless
Rated Rotate Speed: 452r/min(500W), 424r/min(350W)
Rated Output Torque: 10.55N. M(500W); 7.88N. M(350W)
Climb ability: 7-10degree
Running Range: 55km(500W, 48V20Ah); 65-75km(350W, 48V20Ah)
Max speed: 35-40km/h

Controller:
Undervoltage protection value: 42± 0.5V
Overcurrent protection value: 29± 1.0A(500W, 12 pipes )
Overcurrent protection value: 22± 1.0A(350W, 12 pipes )
Charge time: 8 - 10hrs

Recharge time: >300 times
Maximum loading capacity: 75kgs
Brake: (front/rear)drump
Tyres: (front/rear)3.00-10
Suspension: Front hydraulic/rear spring absorber
Carton size: 168x46x100cm
Conveyance:
Qty/20'FCL: 34pcs, Qty/40'FCL: 70pcs, Qty/40'HQ: 100pcs.
