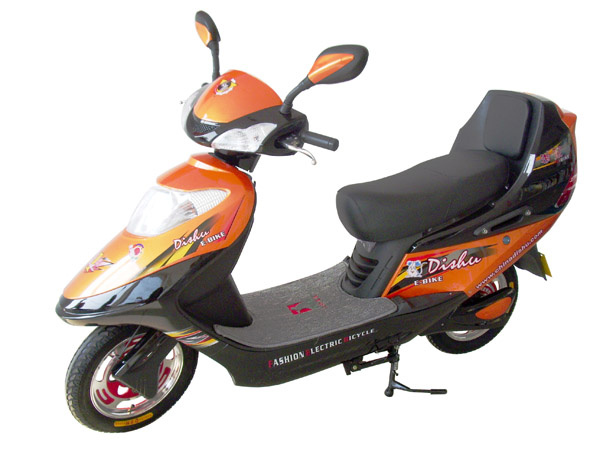

Home Zhejiang Dishu Electric Bicycle Science & Technology Co., Ltd. Electric Motorcycle Tiger (TDR501Z)
Specifications
| Prod Model: | TDR501Z |
|---|
Product Description
SpecificationBatteries: Lead-acid 48V20Ah, 48V14Ah available
Motor: 350W brushless
Rated Rotate Speed: 364r/mim(350W, 16inch)
Rated Output Torque: 13.10N. M(350W, 16inch)
Controller:
Undervoltage protection value: 42± 0.5V
Overcurrent protection value: 22± 1.0A(350W 12pipes)
Overcurrent protection value: 18± 1.0A(350W 6pipes)
Climb ability: 7-10degree
Running Range:; 65-75km(350W, 48V20Ah); 40-50km(350W, 48V14Ah)
Max speed: 35-40km/h
Charge time: 8 - 10hrs
Recharge time: >300 times
Maximum loading capacity: 75kgs
Brake: (front/rear)drump
Tyres: (front/rear)16x3.00 or 16x2.50
Suspension: Front hydraulic/rear spring absorber
Packing
Carton size: 185x57x104cm
Conveyance:
Qty/20'FCL: 24pcs, Qty/40'FCL: 50pcs, Qty/40'HQ: 50pcs.
