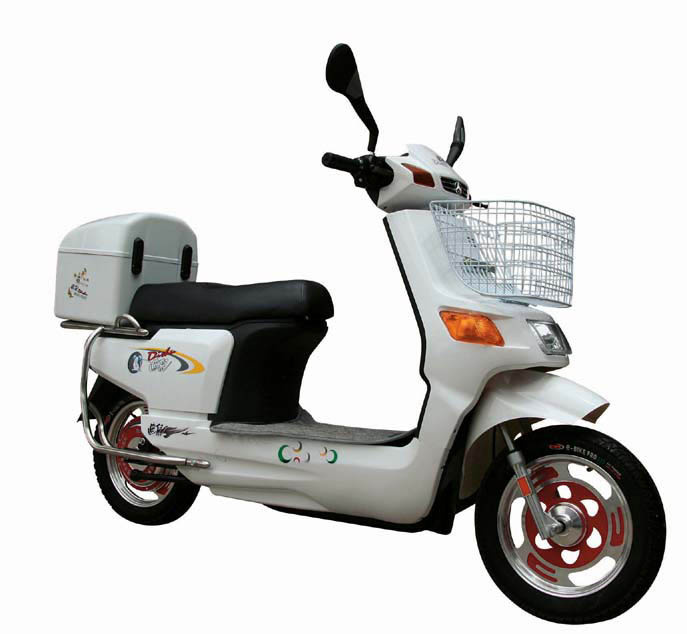

Electric Scooter Cavalier (MTR371Z)

Specifications

Prod Model:	MTR371Z

Product Description

Specification
Batteries: Lead-acid 48V20Ah, 48V14Ah available
Motor: 500W, 350W brushless
Rated Rotate Speed: 452r/min(500W), 424r/min(350W), 364r/mim(350W, 16inch)
Rated Output Torque: 10.55N. M(500W); 7.88N. M(350W), 13.10N. M(350W, 16inch)

Controller:
Undervoltage protection value: 42± 0.5V
Overcurrent protection value: 29± 1.0A(500W 12pipes)
Overcurrent protection value: 22± 1.0A(350W 12pipes)
Overcurrent protection value: 18± 1.0A(350W 6pipes)
Climb ability: 7-10degree
Running Range: 55km(500W, 48V20Ah); 65-80km(350W, 48V20Ah); 40-50km(350W, 48V14Ah)

Max speed: 35-40km/h
Charge time: 8 - 10hrs
Recharge time: >300 times
Maximum loading capacity: 75kgs
Brake: (front/rear)drump
Tyres: (front/rear)16x3.00 or 16x2.50
Suspension: Front hydraulic/rear spring absorber

Packing
Carton size: 180x57x105cm
Conveyance:
Qty/20'FCL: 24pcs, Qty/40'FCL: 52pcs, Qty/40'HQ: 52pcs
