Price: | US $ 870-930/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 5/Piece |
Pay Type: | L/C,T/T |
Specifications
Prod Model: | RPD414H |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
Overall Dimentions (Lxwxh): | "1300 X620 X 980mm " |
Max Forward Speed: | "12km/H " |
Max Backward Speed: | 6km/H |
Braking Distance(≤): | 2.4m |
Ground Clearance: | "90mm " |
Turning Radius: | "1.8m " |
Range Per Change: | 35km |
Front Tire: | "10" " |
Rear Tire: | 14" |
Climbing Capability: | 12?? |
Certification: | CE |
Folded: | Unfolded |
Voltage: | 24V |
Load Capacity: | 140kg |
Power: | 450W |
Product Description

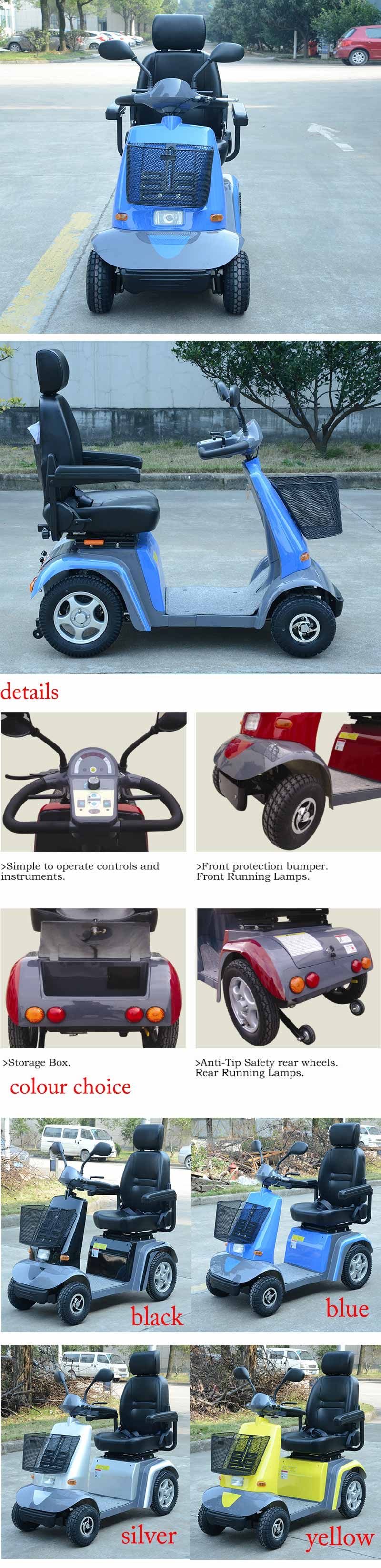

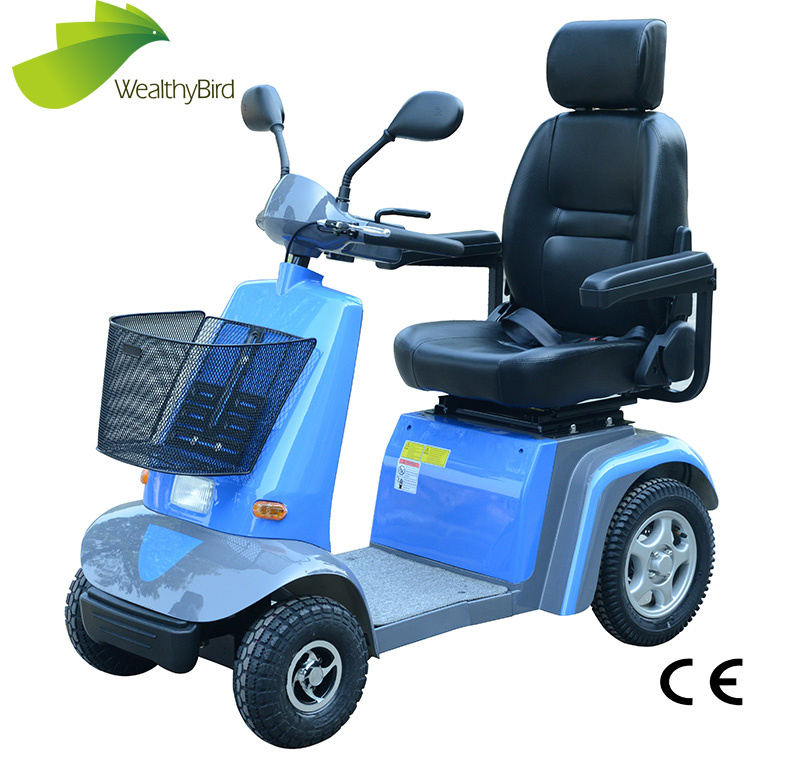

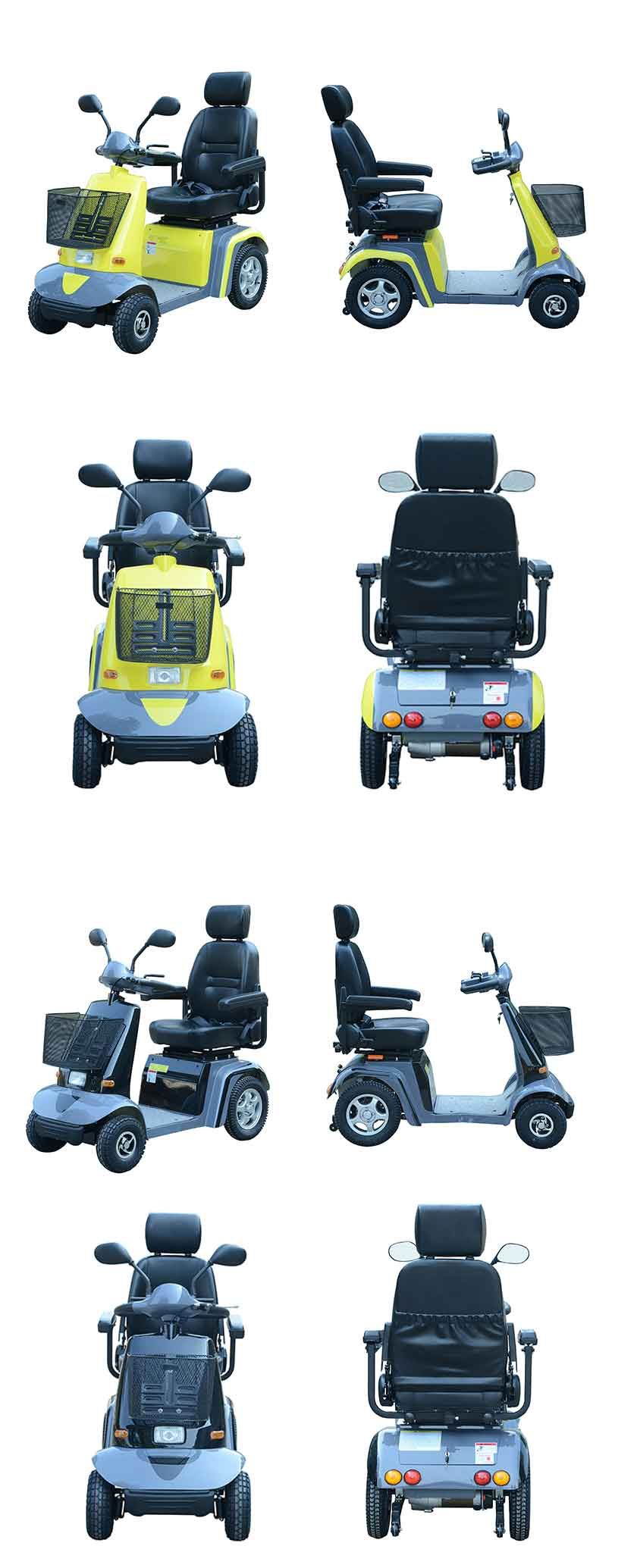

Mobility scooter RPD414L-H | |
Overall Dimentions (LXWXH) | 1300 x620 x 980mm or 51.18"x 24.41"x38.58" |
Max Forward Speed | 12km/h or 7.45mph |
Max Backward Speed | 6km/h or 3.73mph |
Braking Distance(≤) | 2.4m or 95.24" |
Max Climbing slope | 12 degrees |
Ground Clearance | 90mm or 3.54" |
Loading Capacity | 140Kg or 308.91lbs |
turning radius | 1.8m or 70.86" |
Range per Change | 35km or 21.75miles |
Front Tire | 10" |
Rear Tire | 14" |
Motor Rated Power | 450W |
Controller | PG S-Drive 120A |
Charger | 24V 5A |
Batteries(lead acid) | 12V/45AHX2 (Taiwan Long battery ) |
Braking System | Electric Regenerative Braking & Hand brake |
Net Weight with Battery | 100kg or 220.65lbs |
Gross Weight | 114kg or 251.54lbs |
Battery Weight(2pcs) | 29.7kg or 65.53lbs |
Packing Size: | 1470x740x1040mm or 57.87" x29.13"x40.94" |
Container packing | 20GP : 24units |
40GP : 48units | |
40HQ : 48units |
MOQ | 5Pcs/model/color | |
Packing | Stand export carton packing or plywood packing for LCL transport, special requirement available. | |
Payment term | 1, 100% T/T before production for sample order 2, 30% by T/T as deposit , balance to be paid by T/T before shipment if customer designate forwarder. or balance to be paid on copy of bill of lading if goods shipped by RIPU forwarder . 3, We also accept irrevocable L/C at sight | |
Warrany | 12 months warranty:[Battery,Electric motor,Controller,charger] 24 months warranty:[Frame] |
