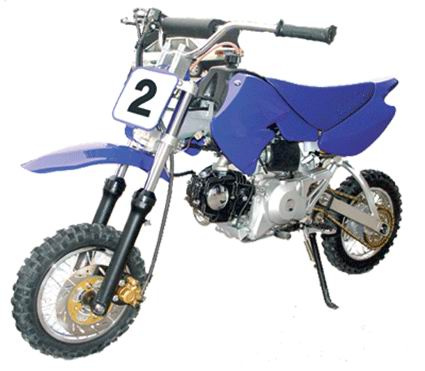

Dirt Bike (PY 110)

Specifications

Prod Model:	PY 110

Product Description

PY110 MAIN TECHNICAL DATA
Engine Type: 4-Strokes, Air Cooled, fully-automatic, Horizontal
Cylinder Arrangement: Single Cylinder
Transmission System: Chain Drive
Bore x Stroke (mm): 49X54
Piston Displacement (cc): 102
Compression Ratio: 9. 0/1
Maximum Power (kw/r/min): 6. 2/7500
Maximum Torque (N. M. /rpm): 7. 07/6000
Starter System: Electric/Kick
Lubrication: Oil Injection
Transmission: 4-speed, Auto Clutch
Overall Length (mm): 1480
Overall Width (mm): 770
Overall Hight (mm): 910
Wheel Base (mm): 1055
Seat Hight (mm): 680
Ground Clearance (mm): Max. 220
Rider Capacity: 1 person
Dry Weight (kg): 70
Brake (Front/Rear) Disc/Disc
Tyre, Front: 2. 5-10-4PR
Tyre, Rear: 2. 5-10-4PR
Air pressure(front tyre)(kpa): PY
Air pressure(rear tyre)(kpa)
Ignition Type: D-C. D. I.
Fuel Tank Capacity (L): 3. 2
Engine Oil Capacity (L): 0. 8
Front Suspension: Telescope Shock absorber
Rear Suspension: Single Swing
Max. Load Capacity (kg): 70
Battery: 12v/3. 5Ah
Cooling system
Carburetor
Clutch auto
