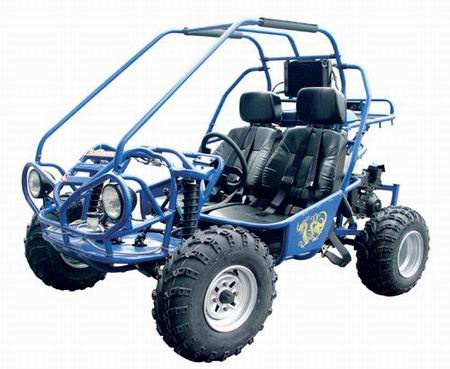

Go Kart (GK250)

Specifications

Prod Model:	GK250

Product Description

Technical Specification of GK250
Model: GK250
Vehicle Type: GO Karts
Engine Type: 4-Strokes, 1-Cylinder Water-Cooled
Cylinder Arrangement: Single Cylinder
Transmission System: Chain Drive
Bore x Stroke (mm): 72X60
Piston Displacement (cc): 244ml
Compression Ratio: 10/1
Rated Power (kw/r/min): 12. 5/7500
Maximum Torque (N. M. /rpm): 17. 6/5500
Starter System: Electric
Lubrication: Oil Injection
Overall Length (mm): 2200
Overall Width (mm): 1340
Overall Hight (mm): 1500
Wheel Base (mm): 1460
Front Wheel Base (mm): 1160
Rear Wheel Base (mm): 1000
Ground Clearance (mm): 170
Rider Capacity: 2 person or 150kg
Gross Weight(kg): 350
Dry Weight (kg): 280
Brake (Rear): Disc
Tyre, Front: 23*7-10
Tyre, Rear: 22*10-10
Air pressure(front tyre)(kpa): 20
Air pressure(rear tyre)(kpa): 25
Ignition Type: C. D. I.
Fuel Tank Capacity (L): 9. 5
Engine Oil Capacity (ML): 850
Climb Capacity: 20
Front Suspension: Independent Arm
Rear Suspension: Telescope Oil Shock absorber
BrakeTrack: <10m 30km/h
Max. Speed(km/h): 50
Max. Load Capacity (kg): 150
Battery: 12v/14Ah
Cooling system: Warter Cool
