Home Jiangmen Shuopu Science and Technology Development Co., Ltd. Dirt Bike (PSTO TL125)

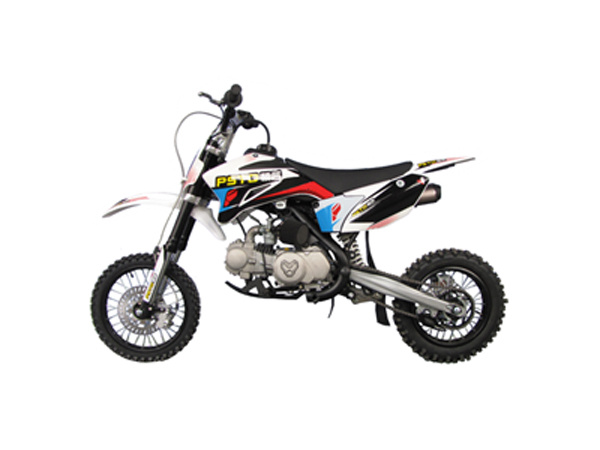

Dirt Bike (PSTO TL125)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 50/Piece |
| Pay Type: | T/T,Paypal |
Specifications
| Prod Model: | PSTO TL125 |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Cylinder Quantity: | 1 |
| Fuel: | Gas / Diesel |
| Condition: | New |
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
ENGINE 4-strokeDISPLACEMENT 120CC
BORE/STROKE 52.5mm x 57mm
COMPRESSION RATIO 9.0: 1
STARTER kick
TRANSMISSION 4 Speed semi Auto
CARBURETOR 22mm
COOLING Air Cooling
CLUTCH 5 plate wet clutch
GEARING 420/15TX39T
Motorcross
CHASSIS
FRAME High Tensil steel specially shaped for pit bike
SUBFRAME Removable
HANDLEBAR Chromoly, low profile, 700mm length
FRONT SUSPENSION 735mm length, 33mm inverted fork, Non adjustable
REAR SUSPENSION 350mm length, 320lbs
SUSPENSION TRAVEL FRONT/REAR 190mm Front/ 52mm Rear
FRONT /REAR BRAKES 210mm front/190mm rear round-style
Rotor W/ Floating Caliper
FRONT/REAR RIMS Steel, 1.40 x 14"/1.85 x 12"
FRONT/REAR TIRES 2.50 x 14"/3.0 x 12"
SWINGARM Needle bearings, "D" shape steel with linkage
WHEELBASE 1240mm
GROUND CLEARANCE 290mm
SEAT HEIGHT 825mm
FUEL TANK CONTENTS 3.80L
CURB WEIGHT 75kg
Overall Length: 1720mm
Overall Width: 750mm
