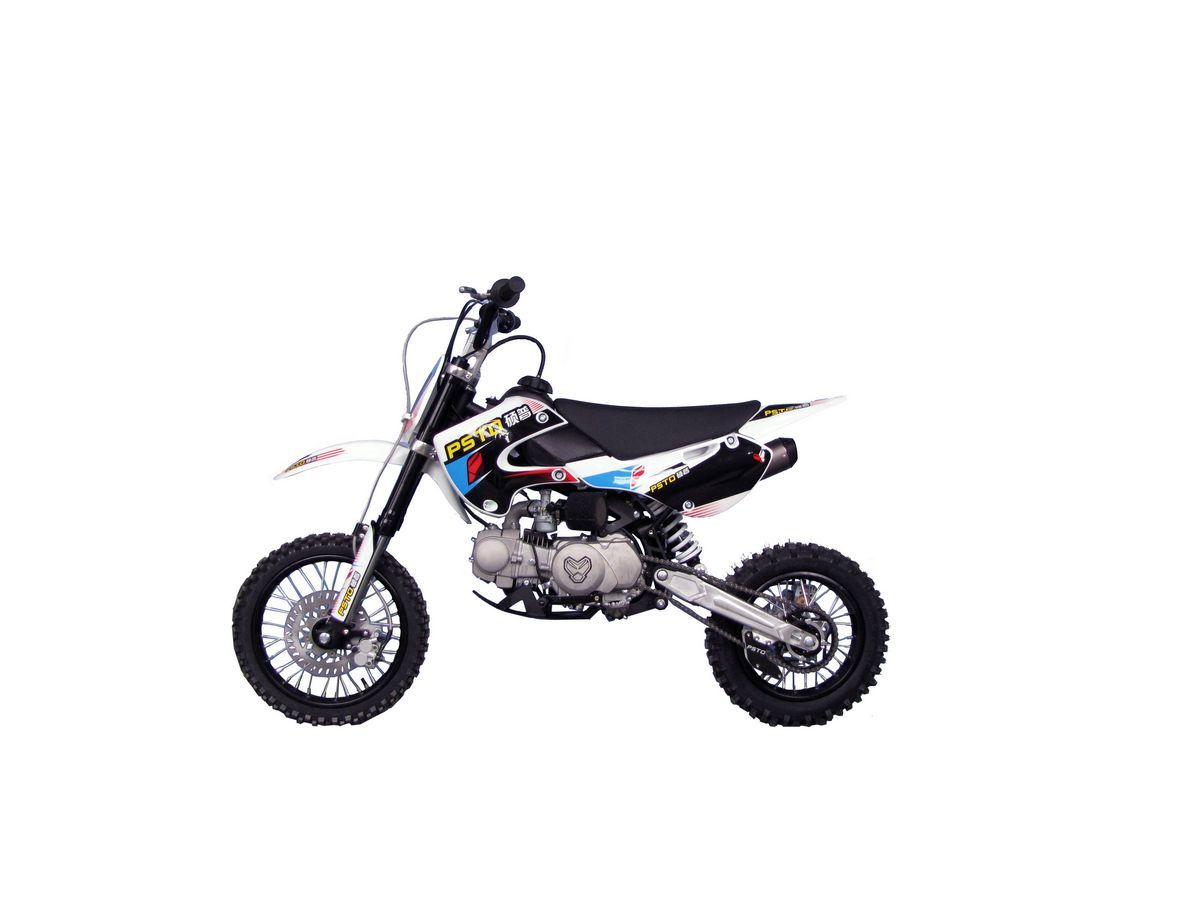

Minicross (125CC) (K125)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB Jiangmen |
| Min Order: | 50Units |
| Pay Type: | T/T |
Specifications
| Prod Model: | K125 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Starting System: | Kick System |
Product Description
ENGINE single cylinder, 4-strokeDISPLACEMENT 140CC
BORE/STROKE 56mm x 57mm
COMPRESSION RATIO 9.0: 1
STARTER kick
TRANSMISSION 4 Speed manual clutch
CARBURETOR 24mm
COOLING CNC oil Cooler
CLUTCH 5 plate wet clutch
GEARING 420/15TX39T
CHASSIS
FRAME Chromoly frame with engine cradle
SUBFRAME Chromoly Removable
HANDLEBAR Steel standard style, 760mm length
FRONT SUSPENSION 735mm length, 33mm inverted fork, Non-adjustable
REAR SUSPENSION 275mm length, 800lbs
SUSPENSION TRAVEL FRONT/REAR 190mm Front/ 52mm Rear
FRONT /REAR BRAKES 210mm front/190mm rear round-style
Rotor / Floating Caliper
FRONT/REAR RIMS Steel, 1.40 x 14"/1.85 x 12"
FRONT/REAR TIRES 2.50 x 14"/3.0 x 12"
SWINGARM Alloy
WHEELBASE 1160mm Axle to Axle
GROUND CLEARANCE 254mm
SEAT HEIGHT 787mm
FUEL TANK CONTENTS 3.78L
CURB WEIGHT 65kg
Overall Length: 1675mm
Overall Width: 810mm
