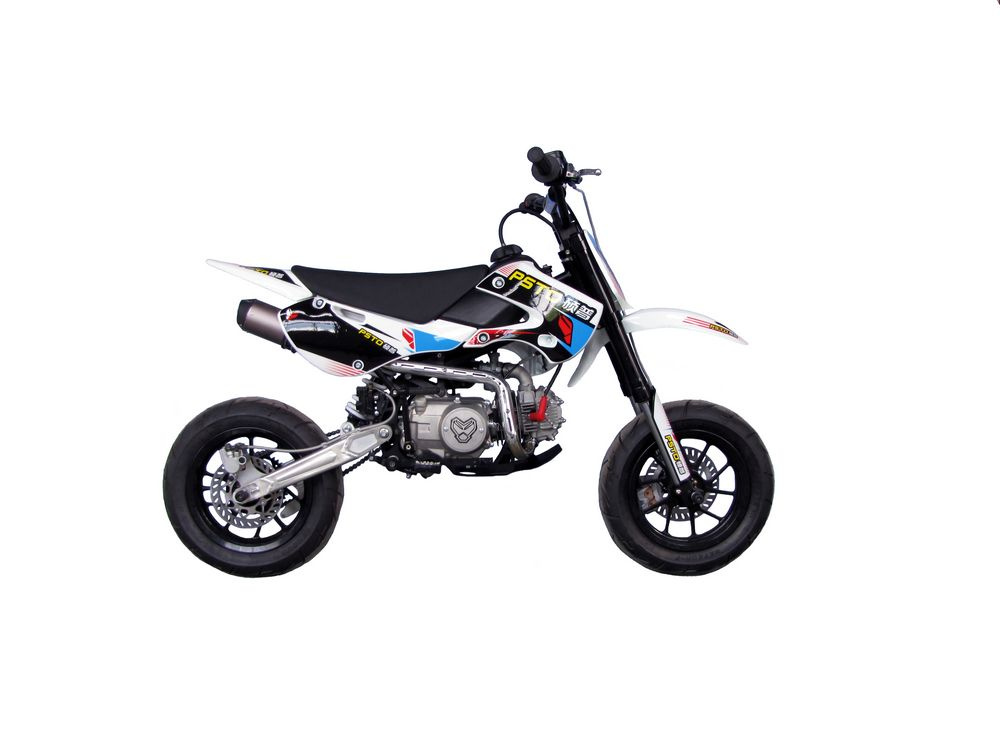

Home Jiangmen Shuopu Science and Technology Development Co., Ltd. Pit Bike KM 125
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
Single cylinder, 4-stroke120.0CC
52.5mm x 57mm
9.0: 1
Kick
Close Ratio 4 Speed manual Clutch
22mm
Air Cooling
5 plate wet clutch
420/15T X 39T
Chromoly frame with engine cradle
Chromoly Removable
Steel standard style, 760mm length
735mm length, 33mm inverted fork, Non adjustable
190mm Front/ 52mm Rear
220mm front/190mm rear round-style Rotor W/ Floating Caliper
Alloy, 2.50 x 12"/2.75 x 12"
110/70-12
Alloy
1160mm Axle to Axle
254mm
787mm
3.78L
70kg
1675mm
810mm
| ENGINE | single cylinder, 4-stroke | |
| DISPLACEMENT | 120.0cc | |
| BORE/STROKE | 52.5mm x 57mm | |
| COMPRESSION RATIO | 9.0: 1 | |
| STARTER | Kick | |
| TRANSMISSION | Close Ratio 4 Speed manual Clutch | |
| CARBURETOR | 22mm | |
| COOLING | Air Cooling | |
| CLUTCH | 5 plate wet clutch | |
| GEARING | 420/15T X 39T | |
| CHASSIS | ||
| FRAME | Chromoly frame with engine cradle | |
| SUBFRAME | Chromoly Removable | |
| HANDLEBAR | Steel standard style, 760mm length | |
| FRONT SUSPENSION | 735mm length, 33mm inverted fork, Non adjustable | |
| SUSPENSION TRAVEL FRONT/REAR | 190mm Front/ 52mm Rear | |
| FRONT /REAR BRAKES |
210mm front/190mm rear round-style Rotor W/ Floating Caliper |
|
| FRONT/REAR RIMS | Steel, 1.40 x 14" /1.85 x 12" | |
| FRONT/REAR TIRES | 2.50 x 14" /3.0 x 12" | |
| SWINGARM | Alloy | |
| WHEELBASE | 1160mm Axle to Axle | |
| GROUND CLEARANCE | 254mm | |
| SEAT HEIGHT | 787mm | |
| FUEL TANK CONTENTS | 3.78L | |
| CURB WEIGHT | 65kg | |
| Overall Length: | 1675mm | |
| Overall Width: | 810mm |
