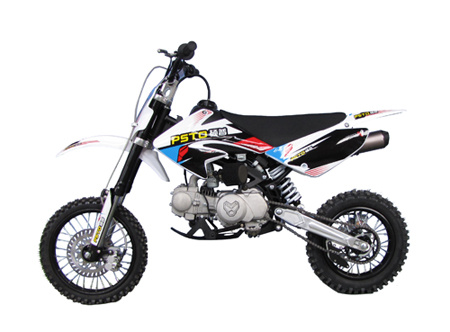

Home Jiangmen Shuopu Science and Technology Development Co., Ltd. CF 125CC Dirt Bike
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
ENGINE 4-strokeDISPLACEMENT 120CC
BORE/STROKE 52.5mm x 57mm
COMPRESSION RATIO 9.0: 1
STARTER kick
TRANSMISSION 4 Speed semi Auto
CARBURETOR 22mm
COOLING Air Cooling
CLUTCH 5 plate wet clutch
GEARING 420/15TX39T
Dirt bike
CHASSIS
FRAME Chromoly frame with engine cradle
SUBFRAME Chromoly Removable
HANDLEBAR Steel standard style, 760mm length
FRONT SUSPENSION 735mm length, 33mm inverted fork, Non adjustable
REAR SUSPENSION Alloy Swing Arm
SUSPENSION TRAVEL FRONT/REAR 190mm Front/ 52mm Rear
FRONT /REAR BRAKES 210mm front/190mm rear round-style
Rotor W/ Floating Caliper
FRONT/REAR RIMS Steel, 1.40 x 14"/1.85 x 12"
FRONT/REAR TIRES 2.50 x 14"/3.0 x 12"
SWINGARM Alloy Swing Arm
WHEELBASE 1160mm
GROUND CLEARANCE 254mm
SEAT HEIGHT 787mm
FUEL TANK CONTENTS 3.78L
CURB WEIGHT 65kg
Overall Length: 1675mm
