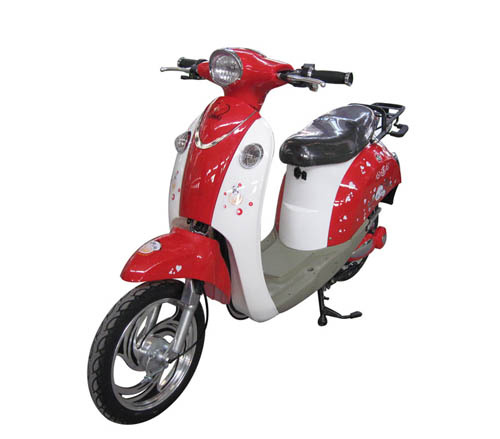

CE Approved Electric Scooter (TDR39Z)

Specifications

Product Description

TDR39Z
Main Technical Parameters of the Whole Vehicle
Appearance Size(L*W*H):
Package Size(L*W*H): 1600*900*450
Wheel Base(mm):
Net Weight(Kg): 54 Kg
Gross Weight(Kg)(wooden case):
Load(Kg): 75 Kg
Max Speed(Km/h): 32 Km/h
Driving Rang(Km): 20-50 Km
Main Technical Parameters of Battery
Type of Battery: Maintenance-free hermetic storage battery
Capacity (Ah): 12AH
Typical Voltage(V): 48V
Main Technical Parameters of Motor
Type of Motor: Integrative wheel-hub motor
Rated Output Power(W): 350W
Rated RPM(r/min): 370 r/min
Rated Voltage(V): 48V
Rated Output Torque(N. M): 8.5 N. M
Main Technical Parameters of Controller and Charger
Under-voltage Protective Value(V): 42V
Over-current Protective Value(A): 16A
Charging Voltage(V): 58.8-59.3 V
Connection Voltage(V): 55.2-56.4 V
Input Voltage(V): 220V
Charging Time(h): 3-8H
