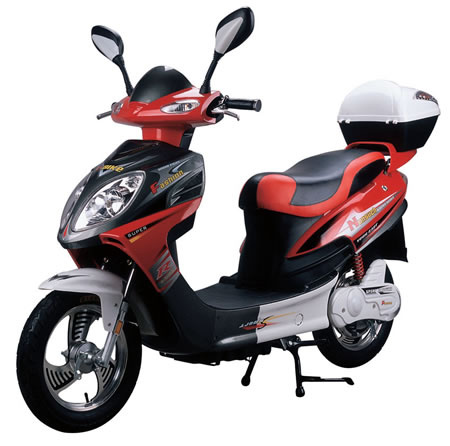

Electric Scooter (TDP15Z)

Specifications

Prod Model:	TDP15Z

Product Description

TDP15Z
Main Technical Parameters of the Whole Vehicle
Appearance Size(L*W*H) :1760*670*1100
Package Size(L*W*H) :
Wheel Base(mm) :1240
Curb Weight(Kg):62.7Kg
Package Weight(Kg)(wooden case):16Kg
Load(Kg):25Kg
Max Speed(Km/h):32 Km/h
Driving Rang(Km):30-60 Km
Main Technical Parameters of Battery
Type of Battery: maintenance-free hermetic storage battery
Capacity (Ah):14AH
Typical Voltage(V) :48V
Main Technical Parameters of Motor
Type of Motor: Integrative wheel-hub motor
Rated Output Power(W):350W
Rated RPM(r/min):360
Rated Voltage(V):48V
Rated Output Torque(N.m):≥8.5
Main Technical Parameters of Controller and Charger
Under-voltage Protective Value(V):42V
Over-current Protective Value(A):16A
Charging Voltage(V):58.8-59.2V
Connection Voltage(V):55.2-55.6V
Input Voltage(V):220V
Charging Time(h):3-8H
