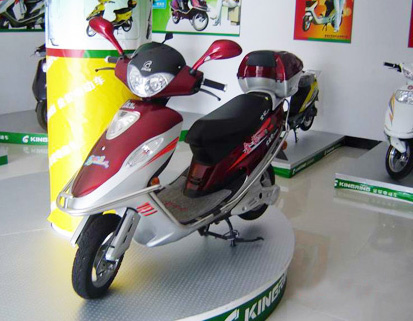

Electric Motorcycle (TDO23Z)

Specifications

Product Description

Appearance Size(L*W*H): 1730*530*1040
Package Size(L*W*H):
Wheel Base(mm): 1230
Curb Weight(Kg): 81.5Kg
Package Weight(Kg)(wooden case): 17Kg
Load(Kg):
Max Speed(Km/h): 40Km
Driving Rang(Km): 35-40Km
Main Technical Parameters of Battery
Type of Battery: Maintenance-free hermetic lead-acid storage battery
Capacity (Ah): 17AH 20AH 24AH
Typical Voltage(V): 48V
Main Technical Parameters of Motor
Type of Motor: Integrative wheel-hub motor
Rated Output Power(W): 500W
Rated RPM(r/min): 470 r/min
Rated Voltage(V): 48V
Rated Output Torque(N. M): 10.5 N. M
Main Technical Parameters of Controller and Charger
Under-voltage Protective Value(V): 42V
Over-current Protective Value(A): 28A
Charging Voltage(V): 58.8-59.2V
Connection Voltage(V): 55.2-55.6V
Input Voltage(V): 220V
Charging Time(h): 3-8H
