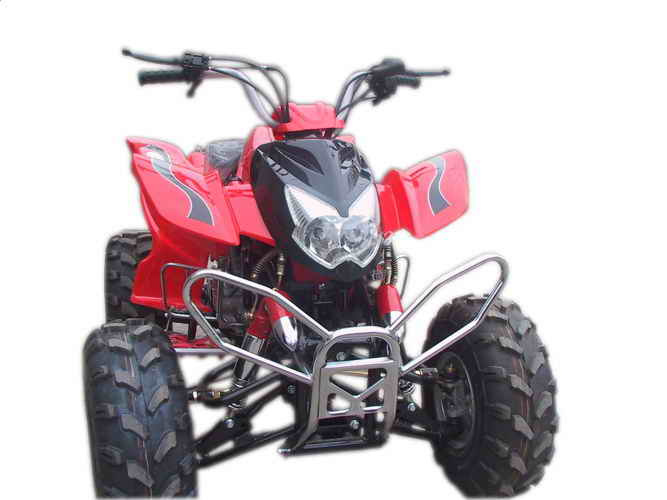

ATV250&ATV200

Specifications

Prod Model:	200ST-2J&250ST-3 (200ST-4&250ST-4 WITH DIFFERENT F

Product Description

200ST-2J&250ST-3
DRY WEIGHT: 145KGS
GROSS WEIGHT: 170KGS
DIMENSION: 1650*1020*1070mm
PACKING SIZE: 1480*850*780mm
Engine Style: 200CC,163ML ,Single Cylinder, Water-cooled, 4-stroke & 250CC,171FMM ,Single Cylinder, Air-cooled, 4-stroke
Bore * Stroke: 63.5*62.2(mm *mm)& 71*58.2(mm *mm)
Max. Power: 9.6/7500±150(Kw/r/min)& 10.8/7500±150(Kw/r/min)
Max. Torque: 14/4500±150(N.m/r/min)& 15.6/4500±150(N.m/r/min)
Displacement: 197(ml) & 229.6(ml)
Transmission System: Chain Drive
Ignition: C.D.I.
Lubrication: Pressure/ Splash
Transmission: Manual
Compression Ratio: 9.8 :1
Starting Type: Electric
Oil Consumption: ≤365(g/Kw·H)
Clutch: Manual
Brake: Style(front/rear) Drum/Disc
Front Tyre: 19*7.50-8
Rear Tyre: 18*9-8
Wheel Base: 1080
Front Shock Absorber: Air Chamber Absorber
Rear Shock Absorber: Middle Absorber
Front Suspension: Double A-arm
Rear Suspension: Middle Absorber
Oil Tank Capacity: 4(L)
Engine Oil Capacity: 1.2L
Gear Oil Capacity: 0.35L
Climbing Ability: ≥25°
Max. Load: 55(Kg)
Max. Speed: 75 Km/H (85 Km/H)
Max. Noice: 80(dB)
Battery: 12V-9AH
