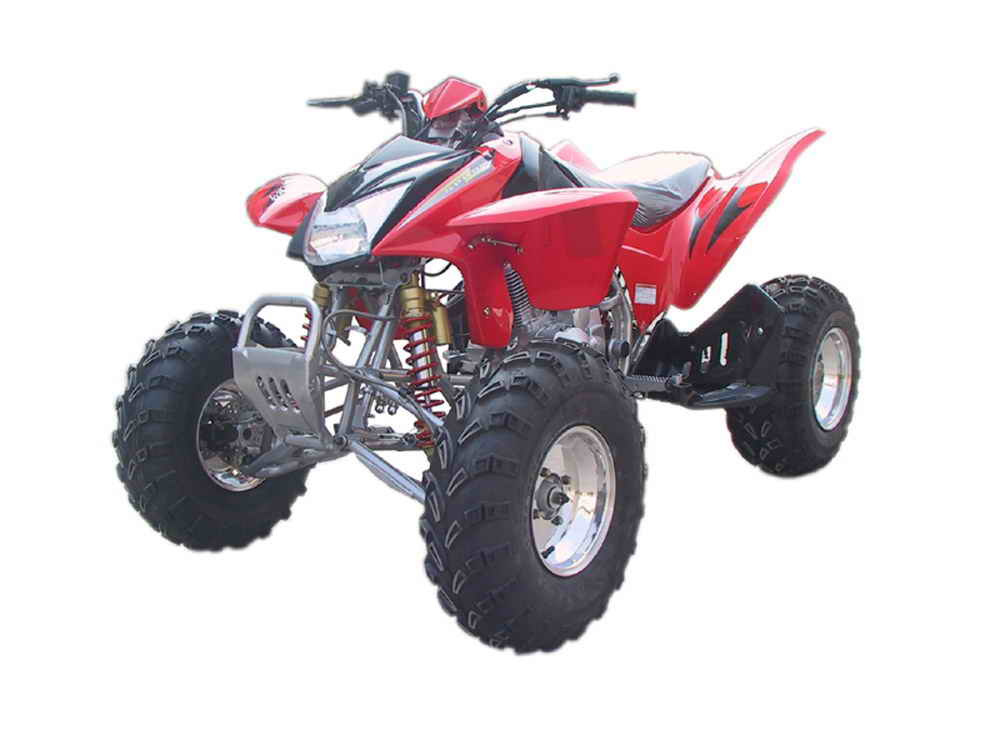

ATV200&ATV250 with Different Fender

ATV200&ATV250 with Different Fender
Price: Negotiable/Piece
Min Order: 1 /Piece

Specifications

Prod Model: 200ST-4&250ST-4 WITH DIFFERENT FENDER

Product Description

200ST-2J&250ST-3
DRY WEIGHT: 145KGS
GROSS WEIGHT: 170KGS
DIMENSION: 1800*1100*1100mm
PACKING SIZE: 1680*1050*860mm
Engine Style: 200CC, 163ML, Single Cylinder, Water-cooled, 4-stroke & 250CC, 171FMM, Single Cylinder, Air-cooled, 4-stroke
Bore * Stroke: 63.5*62.2(mm *mm)& 71*58.2(mm *mm)
Max. Power: 9.6/7500± 150(Kw/r/min)& 10.8/7500± 150(Kw/r/min)
Max. Torque: 14/4500± 150(N. M/r/min)& 15.6/4500± 150(N. M/r/min)
Displacement: 197(ml) & 229.6(ml)
Transmission System: Chain Drive
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Transmission: Manual
Compression Ratio: 9.8: 1
Starting Type: Electric
Oil Consumption: ≤ 365(g/Kw· H)
Clutch: Manual
Brake: Style(front/rear) Drum/Disc
Front Tyre: 19*7.50-8
Rear Tyre: 18*9-8
Wheel Base: 1080
Front Shock Absorber: Air Chamber Absorber
Rear Shock Absorber: Middle Absorber
Front Suspension: Double A-arm
Rear Suspension: Middle Absorber
Oil Tank Capacity: 4(L)
Engine Oil Capacity: 1.2L
Gear Oil Capacity: 0.35L
Climbing Ability: ≥ 25°
Max. Load: 55(Kg)
Max. Speed: 75 Km/H (85 Km/H)
Max. Noice: 80(dB)
Battery: 12V-9AH
