Home Chongqing Weijie Industry Co., Ltd. ATV200

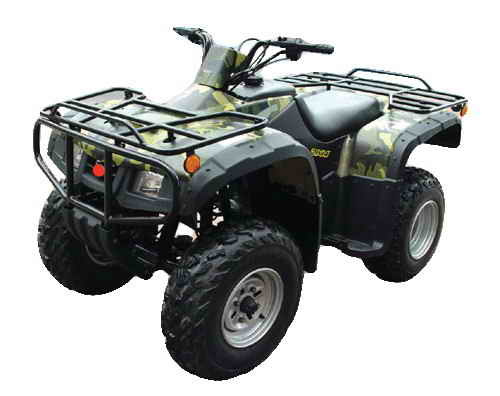

ATV200

ATV200
Price: Negotiable
Min Order: 1

Specifications

Prod Model: 200ST-2A

Product Description

200ST-2A
DRY WEIGHT: 245Kg
GROSS WEIGHT: 273Kg
DIMENSION: 1950*1080*1120
PACKING SIZE: 1980*1080*860
Engine Style:163FML,Single Cylinder, Air-cooled, 4-stroke
Transmission System:Shaft Drive
Bore *Stroke:63*62
Ignition:C.D.I
Max. Power:11/7000Kw/r/min
Max. Torque:13/6000N.M/r/min
Lubrication:Pressure/ Splash
Transmission:International 4 gears and 1reverse gear
Compression Ratio:9.0:1
Starting Type:Electric
Oil Consumption:≤365(g/Kw·H)
Clutch:Manual
Brake Style(front/rear):Drum/Drum
Front Tyre:23*7-10
Rear Tyre:22*10-10
Wheel Base:1160mm
Front Shock Absorber:Independent Hanging
Rear Shock Absorber:Middle Absorber
Front Suspension:single A-arm
Rear Suspension:Middle Absorber
Displacement:193.2ml
Oil Tank Capacity:7.2L
Engine Oil Capacity:1.6L
Gear Oil Capacity:0.27L
Climbing Ability:≥28
Max. Load:165Kg
Max. Speed:80Km/h
Max. Noice:80(dB)
Battery:12V-18AH
