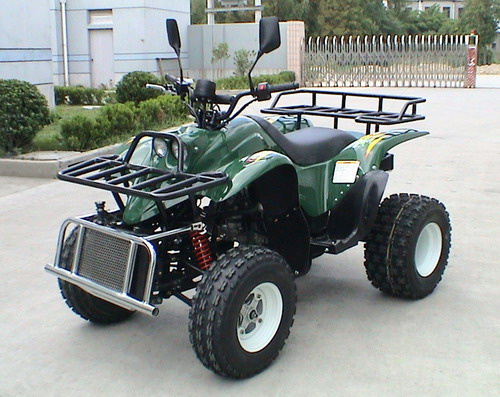

Home Jetstar Industries Group Co. ATV YDST300
Specifications
Product Description
1 Dimensions (L x W x H): 1, 950 x 1, 150 x 1, 1102 Packing size (L x W x H): 1, 900 x 1, 060 x 870
3 Distance between axles: 1, 290
4 Distance between rear wheels: 900
5 Net weight: 245
6 Max. speed: 80
7 Economical oil consumption (L/100km): 5
8 Brake system (front/rear): disk / disk
9 Tyre (front/rear): 21x7-10/22x11-10
10 Fuel tank: 9. 3L
11 Front suspension: spring shock absorber
12 Rear suspension: spring shock absorber
13 Specs engine: 173MN
14 Displacement (ml): 278
15 Bore x stroke: 72. 8 x 66. 8
16 Type of engine: single-cylinder, four-stoke, liquid-cooled engine
17 Transmission: CVT
18 Drive mode: shaft
19 Starting system: electric
20 Rated power: 14kW/6, 500r/min
21 Max. power: 15kW/6, 500-7, 000r/min
22 Max. torque: 23N. m/5, 500r/min
23 Ignition: T. C. I
24 Optional color: red, yellow, blue, green
Conveyance:
Qty/20' FCL: 12 sets
Qty/40' FCL: 36 sets
