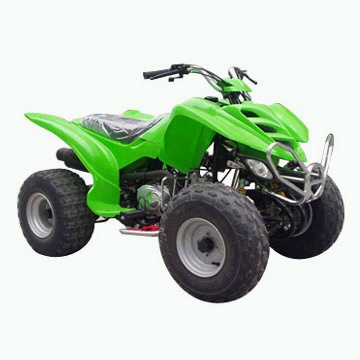

ATV (ATV90)

Specifications

Product Description

Product Information
Engine:
Engine Type Single Cylinder, 4Stroke, AIR Cooled
Engine Displacement(ml) 89
Bore x Stroke(mm) 47*49. 5
MAX Power(km/r/min) 5. 2/8000
MAX Torque(r/min) 5. 9/6000
MIN Fuel Comsumption(g/kw. H) 367
Transmission:
Start Mode Electrical
Transmission Mode AXLE/Chain
Brake Mode DRUM
Brake Distance(m/30km) 7
Shift Speed Type Four, With Reverse gear
Clutch Mode Automotive
External Condition:
Length x Width x Height(mm) 1540*850*970
MIN Turning Radius(mm) 3000
Climbing Degree 25
Lamp Head lamp
Seat Height(mm) 670
MIN Ground Clearance(mm) 120
Top Speed(km/h) 50
Type Dimension(Front/Rear) AT19*7-8/AT18*9. 5-8
Cover Material PP
Color RED/BLUE/GREEN
Packing:
Carton dimension: 1480*860*760mm
N. W. 130kg
G. W. 155kg
Conveyance:
QTY/20? GP 27pcs
QTY/40? GP 63pcs
QTY/40? HQ 63pcs
