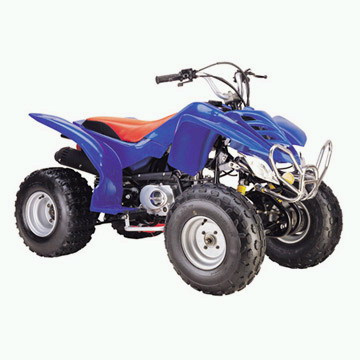

ATV (ATV110)

Specifications

Product Description

Features:
1) Product dimensions: (L x W x H) 1540 x 600 x 500mm
2) Wheel base: 1040mm
3) Min. Ground clearance: 100mm
4) Dry weight: 140kg
5) Fr. Tyre size: 19 x 7-8/2. 9Psi
6) Rr. Tyre size: 18 x 9-8/2. 09Psi
7) Fr. /Rr. Break: Drum
8) Max load capacity: 95kg
9) Fuel tank capacity: 7. 8L
10)Piston displacement: 107cc
11)Min. Turning radius: 2400mm
12)Engine oil capacity: 0. 95L
13)Gear oil capacity: 0. 12L
14)Max speed: 50km/h
15)Engine model: 1P52FMH
16)Engine type: Single-cylinder, air-cooled, 4 stroke
17)Bore x Stroke: 52. 4 x 49. 5mm
18)Displacement: 107ml
19)Compression ratio: 9. 1: 1
20)Power(kw/r/min): 4. 5/7000
21)Max. Torque (N. M/r/min): 6. 5/5000
22)Starting system: Electric, kick
23)Ignition: CDI
24)Front suspension: Leading arm
25)Rear suspension: Monoshock swing arm
26)Color selections: Red, Yellow, Blue, Green, Black

Packing:
Carton dimensions: 1475 x 800 x 800mm

Conveyance:
Qty/20'FCL: 27pcs
Qty/40'FCL: 63pcs
Qty/40'HQ: 63pcs
