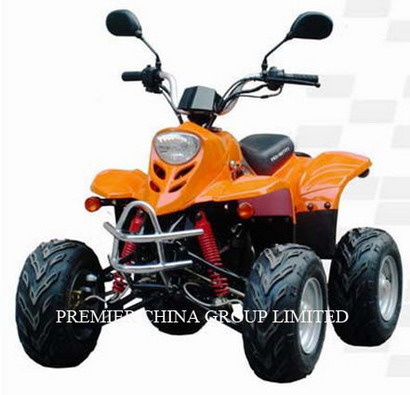

ATV (PM50ST)

Specifications

Prod Model:	PM50ST

Product Description

BASIC SPECIFICATION:

Dimension(L*W*H) mm: 1540*920*1030
Engine Type: 1P52FMH; Air-cool; 4 stroke
Displacement(ml): 49.0
Wheel Base(mm): 1013
Ground Clearance(mm): 125
Dry Weight (kg).: 117
Max Loading Capacity (kg): 120
Start Mode: Electric
Transmission: Chain; CVT; No reverse
Clutch: Automatic
Brake Mode(F./R.): Disc/Disc
Brake Operation(F./R.): Hand/foot
Max Power(kw/r/min): 5.0/7500
Max Torque (N. M. /rpm): 5.8/7000
Wheel Size(F./R.): 16*7-8/16*7-8
Tyre Size(F./R.): 16*7-8/16*7-8
Fuel Tank Capacity (L): 2.6
Suspension (F./R.): Double swingarm

20": 34
40": 69
40"HQ: 69
