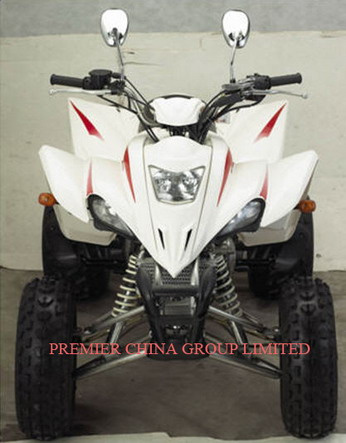

ATV (PM400ST-2S)

Specifications

Prod Model:	PM400ST-2S

Product Description

BASIC SPECIFICATION:

Dimension(L*W*H) mm: 1760*1110*1180
Engine Type: Single cylinder, Air-cooled + oil-cooled;
Displacement(mL): 387
Wheel Base(mm): 1230
Ground Clearance(mm): 250
Start Mode: Electric
Transmission:
Chain; 6 forward gears+ reverse gear+ neutral gear
Clutch: Manual
Dry Weight (kg).: 200
Max Loading Capacity (kg): 350
Brake Mode(F. /R. ): Disk/Disk
Max Power(kw/r/min): 12.5/7000
Max Torque (N. M. /rpm): 19.5/6000
Tyre Size(F. /R. ): AT21X7-10/AT20X10-9
Max Speed(km/h): 80
Fuel Tank Capacity (L): 8.8
Suspension (F. /R. ):
Double Swing Arm/Mono shock absorber
20": 12
40":
40"HQ: 38
