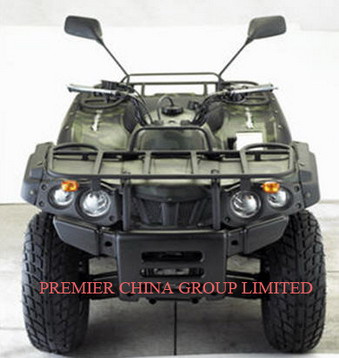

ATV (PM400ST-2)

Specifications

Prod Model:	PM400ST-2

Product Description

BASIC SPECIFICATION:

Dimension(L*W*H) mm: 1930*1045*1130
Engine Type: Single cylinder, air-cooled
Displacement(mL): 387
Wheel Base(mm): 1260
Ground Clearance(mm): 245
Start Mode: Electric
Transmission: 4 wheels drive, AUTOMATIC, shaft
Clutch: Automatic
Dry Weight (kg).: 276
Max Loading Capacity (kg): 426
Brake Mode(F. /R. ): Disk/Disk
Brake Operation(F. /R. ): Hand/foot
Max Power(kw/r/min): 12.5/7000
Max Torque (N. M. /rpm): 19.5/6000
Max Speed(km/h): 56
Tyre Size(F. /R. ): AT25X8-12/AT25X10-12
Fuel Tank Capacity (L): 15
Suspension (F. /R. ):
Double Swing Arm/Mono shock absorber
20": 10
40":
40"HQ: 36
