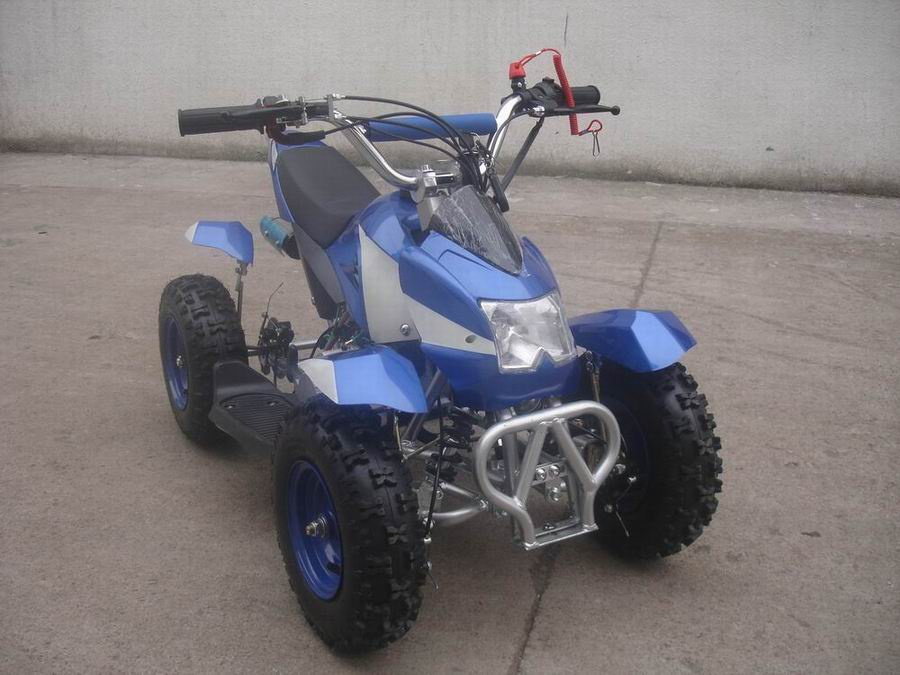

49CC Mini Quad (YHXA316)
| Price: | US $ 169/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 88/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | YHXA316 |
|---|---|
| Markets: | South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
| Brake Type: | Disc Brake |
| Maximum Speed: | <50 km/h |
| Fuel: | Gas / Diesel |
| Certification: | CE |
| Transmission System: | Chain Drive |
| Engine Type: | 2 Stroke |
| Structure: | Without Door |
| Transmission Type: | Automatic |
| Displacement: | 49CC |
Product Description
49CC mini quadMini quad, quad for kids
Art. No.: YHXA316
Engine
1. Type: 2-Stroke, Single cylinder, Air-cooled
2. Displacement: 49CC
3. Bore x Stroke (mm): 40x32
4. Compression Ratio: 10.0: 1
5. Drive system: Chain
6. Start system: Pull/electric start(12V/7AH)with head light
7. Ignition: CDI
8. Max Speed (km/h): 33.5
9. Max Power KW(r/min): 1.52/6500
10. Max Torque N. M(r/min): 2.3/6000
Chassis
11. Suspension / Front & Rear: Spring shock absorber
12. Brake / Front & Rear: Double Disc/Single Disc
13. Tires / Front & Rear: 4.10-6/13x5.0-6
14. Rated load(kg): 50
Product Size
15. LxWxH (mm): 1030x580x690
16. Seat Height (mm): 420
17. Ground Clearance (mm): 70
18. Wheelbase (mm): 690
19. Fuel Capacity (L): 2
20. Wheel tread(F/R)(mm): 500/500
Packaging
21. G. W. /N. W. (kg): 43/39
22. Carton size(mm): 980x620x530
23. Container load:
20'GP: 78PCS
40'HQ: 240PCS
