Specifications
Prod Model: |
YHXPB101 |
Markets: |
South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
Fuel: |
Gas / Diesel |
Condition: |
New |
Certification: |
CE |
Start Method: |
Pull Start |
Engine Type: |
2-stroke |
Displacement: |
≤50CC |
Product Description

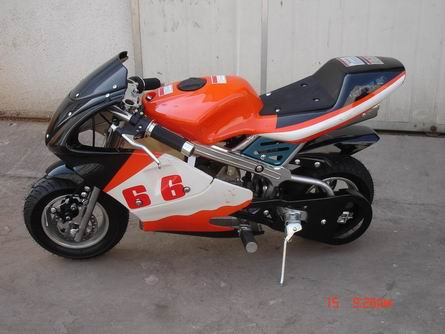

49CC mini pocket bike
Pocket bike for kids
Art. No.: YHXPB101
Engine
1. Type: 2-Stroke, Single cylinder, Air-cooled
2. Displacement: 47CC
3. Bore x Stroke (mm): 40x32
4. Compression Ratio: 10.0: 1
5. Drive system: Chain
6. Start system: Pull start
7. Ignition: CDI
8. Max Speed (km/h): 24
9. Max Power KW(r/min): 1.52/6500
10. Max Torque N. M(r/min): 2.3/6000
Chassis
11. Suspension / Front & Rear: Spring shock absorber
12. Brake / Front & Rear: Single Disc/Single Disc
13. Tires / Front & Rear: 90/65-6.5(tubeless)
14. Rated load(kg): 50
Product Size
15. LxWxH (mm): 970x550x600
16. Seat Height (mm): 480
17. Ground Clearance (mm): 110
18. Wheelbase (mm): 725
19. Fuel Capacity (L): 1
Packaging
20. G. W. /N. W. (kg): 23/18
21. Carton size(mm): 1050x320x585
22. Container load:
20'GP: 175PCS
40'HQ: 357PCS
