Specifications
Prod Model: |
YHXA001 |
Markets: |
South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Transmission System: |
Chain Drive |
Engine Type: |
2 Stroke |
Structure: |
Without Door |
Transmission Type: |
Automatic |
Displacement: |
49CC |
Product Description

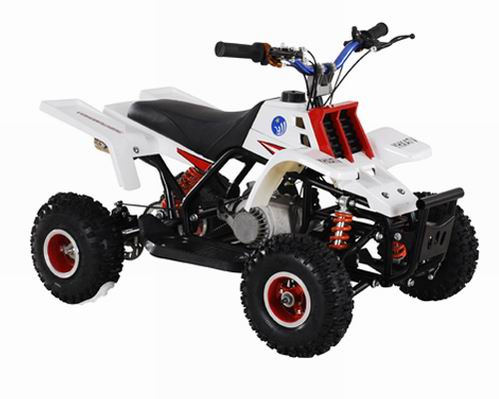

49CC mini ATV
Art. No.: YHXA001
Engine
1. Type: 2-Stroke, Single cylinder, Air-cooled
2. Displacement: 49CC
3. Bore x Stroke (mm): 40x32
4. Compression Ratio: 10.0: 1
5. Drive system: Chain
6. Start system: Pull start
7. Ignition: CDI
8. Max Speed (km/h): 33.5
9. Max Power KW(r/min): 1.52/6500
10. Max Torque N. M(r/min): 2.3/6000
Chassis
11. Suspension / Front & Rear: Spring shock absorber
12. Brake / Front & Rear: Double Disc/Single Disc
13. Tires / Front & Rear: 4.10-4
14. Rated load(kg): 50
Product Size
15. LxWxH (mm): 1040x680x690
16. Seat Height (mm): 420
17. Ground Clearance (mm): 70
18. Wheelbase (mm): 700
19. Fuel Capacity (L): 1
20. Wheel tread(F/R)(mm): 600/490
Packaging
21. G. W. /N. W. (kg): 33/28
22. Carton size(mm): 980x670x530
23. Container load:
20'GP: 72PCS
40'HQ: 205PCS
