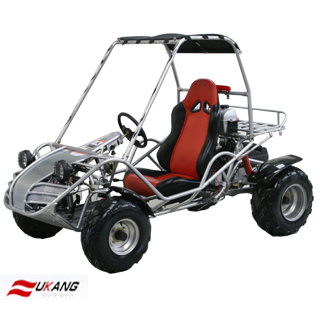

125CC EEC Gokart (Eagle I 125)

Specifications

Prod Model:	Eagle I 125

Product Description

EAGLE 125 Gokart Basic Technical Parameter:

Gategory Item Parameter
Dimension (LxWxH): 2240x1170x1495mm
Seat Height: 450mm
Wheelbase: 1500mm
Front Track: 1160mm
Rear Track: 1120mm
Ground Clearance: 120mm
Engine Type Single, 4-stroke, Lie model
Model: 152QMI
Bore x Stroke: 52.4mmX57.8mm
Displacement: 124.6ml
Compressive Ratio: 9.2: 1
Max. Power & RPM: 5.5kw/7500r/min
Max. Torque & RPM: xxxxx/6000r/min
Min. Unloading RPM: 1700r/min
Xxxxx consumption less than 367g/kwh
Engine Rotate Direction Counter clockwise (output power plug).

Ignition C. D. I
Lubrication Force & Splash
Starting Electric
Quality Unloading Weight 198 kgs
Transmission Clutch Drying, Automatic of axis
Transmission CVT
Tire Front Wheel: 16 X 7~8
Rear Wheel: 19 X 9.5~8
Tire Pressure Front Wheel: 80~90 kpa
Rear Wheel: 80~90 kpa
Accessory Carburetor Constant vacuum diaphragm
Spark Plug: D7RC
Muffler Silencer Impact Resistant
Air Box Paper Element
Battery: 12V 9Ah
Gas Tank Capacity (L): 10L
Gas Brand: 90# No Lead
Lubricate Brand: SEA15W/40/SF

Item Unit Guideline
Top Speed (km/h): 50
Starting Performance (s): ≤15
Brake Distance (m): 7
Climbing: 15%
Limits and measurement of noise (Db(A)): 80
Emission of pollutants Idle Speed (CO) CO%: 4
(HC) HC(ppm) :1000
Visible grain objects should never be released under any condition
Initial Accelerate (s): 100m 11s.
