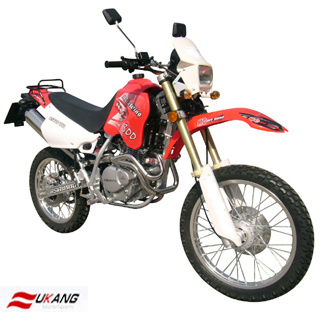

300cc Dirt Bike EEC DOT (RC300)

Specifications

Prod Model:	RC300

Product Description

Product Description:
RC300DS EEC
ENGNE
Engine Type Air-cooled 4-stroke 4-valve SOHC single
Bore [mm] 78
Stroke [mm] 61.2
Cylinder capacity [cm 3 ] 292.5
Compression ratio 8.9: 1
Carburetor TK Vacuum diaphragm (BS34)
Maximum net power output 22.7HP at 7500 rpm
Net maximum torque 20.0N*M at 6000 rpm
Cold-starting system Manual Choke
Ignition CDI
Starter Electric button
TRANSMISSION
Gearbox 5-speed
Final drive 520 ring sealed chain

DIMMENSION AND WEIGHT
Length x width xheight 2280 x 885 x 1220 mm
Wheelbase 1446 mm
Ground Clearance 340 mm
Seat Height 960 mm
Fuel tank Maximum capacity 12 liters
Dry weight 146 kg

Wheels/SUSPENSION/BRAKES
Wheels Front Aluminum rim/wire spoke
Wheels Rear Aluminum rim/wire spoke
Tyres Front 300-21 51S
Tyres Rear 410-18 59S
Suspension Front 41mm inverted leading-axle twin-chamber cartridge type telescopic fork with rebound damping; 240mm axle travel
Suspension Rear Progressive "soft damper"; 60mm axle travel
Brakes Front Single 260mm hydraulic disc with dual-piston caliper
Brakes Rear Single 230mm hydraulic disc with dual-piston caliper.
