Specifications
Product Description
SPECIFICATIONS

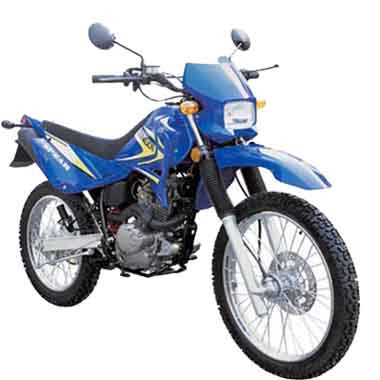

Model No: XF125GY EEC
Engine
Type 124cc, single-cylinder, 4-stroke, air- cooled
Bore x Stroke (mm) 56.5 x 49.5
Compression Ratio 9.2:1
Ignition CDI
Transmission 5-speed gear shift
Starting system Electric/kick-back
Max power 11.5kw/8000r/min
Drive chain
Chassis
Suspension/Front Spring oil damper
Suspension/Rear Swing-arm spring oil damper
Brakes/Front Disc type
Brakes/Rear Drum type
Tires/Front 2.75-21 225kpa
Tires/Rear 4.10-18 225kpa
Dimensions
Length x Width x Height 2120mm x 800mm x 1180mm
Wheelbase 1400mm
Dry Weight 118kg
Fuel Capacity 10.0L
Color Options
yellow, Red, Green, Blue
Qty/40': 52units/40GP
