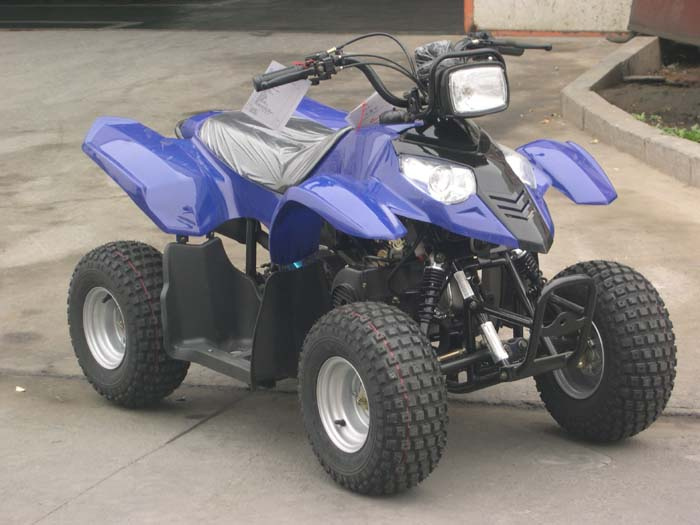

50cc ATV with EEC

Specifications

Prod Model:	50ATV-2B EEC

Product Description

Model No XF50ATV-2B EEC
Engine
Type 49.58cc, single-cylinder, 4-stroke, air-cooled
Bore x Stroke 47 x 41.4
Compression ratio 10.5:1
Ignition CDI
Transmission Automatic CVT, 2WD
Lubrication type Seprate lubrication
Clutch Dry auto-centryfugal
Starting system Electric/Kick back starting
Rate power and rotate speed 3.2kw/7000r/min
Chassis
Brakes/Front Drum type
Brakes/Rear Disc type
Tires/Front 16 x 7-8
Tires/Rear 16 x7-8
Dimensions
Length 1400mm (66.2")
Width 830mm (40.6")
Height 950mm (43.3")
Dry Weight 95kg
Max speed 40km/h
Fuel Capacity 4.5L (1.6 gal)
Qty 45pcs/40'HQ
