Specifications
Prod Model: |
YHXA312 |
Markets: |
South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
Maximum Speed: |
<50 km/h |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Transmission System: |
Chain Drive |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission Type: |
Automatic |
Displacement: |
110CC |
Brake Type: |
F/R: Drum/Dice |
Product Description

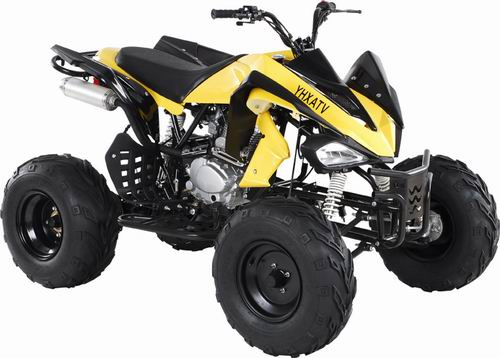

110CC electric start ATV
Art. No.: YHXA312
1)Size (mm)1370*1010*950 mm
2)Net weight (kg)97 kgs
3)Max loading capacity (kg)112 kgs
4)shaft distance 935 mm
5)wheel base front 740 mm, rear 690 mm
6)Tires size Front/Rear16*8-7/16*8-7
7)Max speed50 km / h
8)Brake system Front/Rear drum brake
9)suspension adjustable air suspension
10)Battery 4 A, negative earth
11)Fuel tank capacity4.0 L
12)Fuel Petrol
13)Start methodElectic start
14)IgnitionCDI
15)Engine type1 Cylinder, 4 stroke
16)Type CC110CC
17)Max power6.0 kw at 8500 min/
18)Max torque7.0 Nm at 6500 min/
19)Compressio ratio9.1: 1
20)Coolingair cooling
Conveyance:
Qty/40'' HQ: 98PCS
