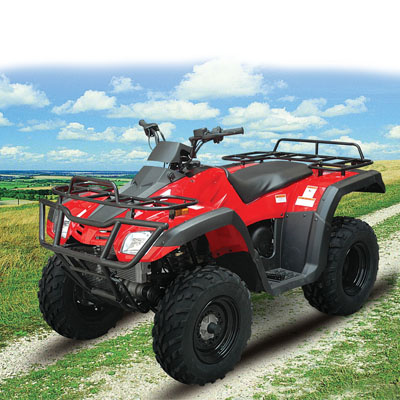

Zc-ATV-11

Specifications

Prod Model:	ZC-ATV-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Engine:	300cc,4 Stroke, Water-Cooled,4WD
Final Drive:	Shaft Drive
Transmission Type:	Manual Control
Color:	Red,Black,Yellow,Blue and Optional
Engine Type:	4-Stroke
Certification:	EPA
Fuel:	Gas / Diesel
Condition:	New
Displacement:	300cc
Type:	ATV
Braking Mode:	Hydraulic Disc Brake
Engine Size:	300cc

Product Description

ZC-ATV-11
Engine: 300CC, 4-stroke, air cooled, 4WD
Max Loading: 200kg
Ground clearance: 210mm
Front wheel: 25X8-12
Rear wheel: 25X10-12
Rated power: 16kw/6, 500rpm
Max torque: 26N. M/5, 000rpm

Art No:	ZC-ATV-11
Engine type:	300CC,4 stroke, Water-cooled,4WD
Engine brand:	FEISHENG
final drive:	Shaft drive
transmission type:	manual control,                                            hand clutch (3 gears with forward back a file R-0-1-2-3
Displacement:	300CC
Fuel:	Gas
starting:	Electric
distance between front wheel:	950mm
distance between rear wheel:	800mm
distance between axles:	1150mm
Ground clearance:	210mm
Max Speed:	≥75km/h
front wheel:	25*8-12
rear wheel:	25*10-12
compression ratio:	8.7:1
rated power:	16kw/6500rpm
Max torque:	26N.m/5000rpm
Brake:	hydraulic disc brake
Battery :	9AH/12V
Fuel Tank capacity:	14L
Net/Gross weight :	330kgs/350kgs
Carton dimensions:	229*116*88cm
container:	10pcs/20FCL,22pcs/40FCL, 33pcs/40HQ
MOQ:	5pcs
Port:	Ningbo
cetification:	CE,EEC,EPA
Color:	Blue,black,red,yellow..optional
Packaging Details:	iron  cage with carton outside
Delivery Detail:	20-40days
