Home Xingtai Winway Import and Export Trading Co., Ltd. Ww-8201, Gn125 Motorcycle Regulator Rectifier, 12V

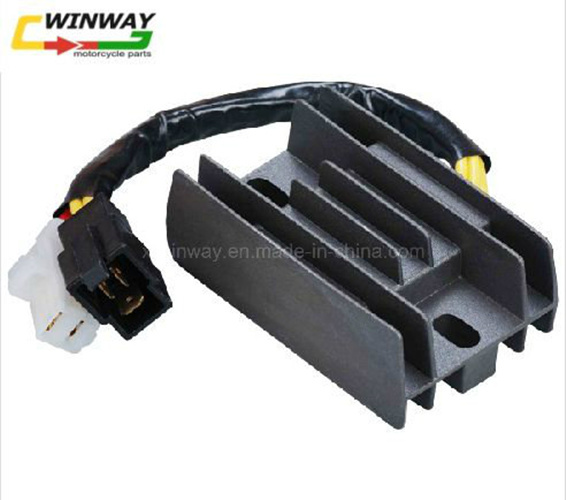

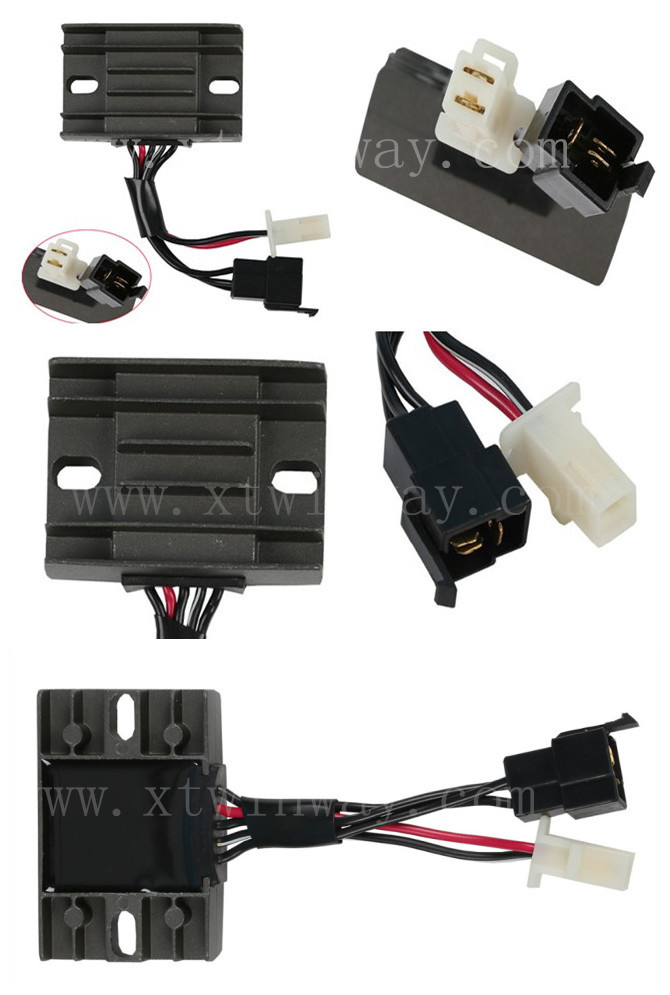

Ww-8201, Gn125 Motorcycle Regulator Rectifier, 12V
| Price: | US $ 1.68-1.69/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
Specifications
| Prod Model: | WW-8201 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Model: | Gn125 |
| Key Words: | Motorcycle Regulator Rectifier |
| Color: | Black |
| Packing: | Bag |
| Type: | Electrical |
| Certification: | SGS |
Product Description
WW-8201,GN125 Motorcycle parts, Motorcycle electrical part, Motorcycle Regulator RectifierThis part is manufactured with import famous brand electrical components through double or try control high sensitivity balanced clip technique, which makes the part characterized by steady supply voltage and load voltage, high load power and prolonging battery lift.The precision of voltage is controlled within±0.3V;charging voltage is controlled within±14.80.5V and charging current is controlled within 3V. The maximum level of accommodation is 0.9U for the highest rotating speed load rating. The rotating speed range of magnetic motor is 0~11000r/min.
Product name GN125 motorcycle regulator
Applicable Models Haojue GN125 series
Characteristics
1.Three-phase full-wave rectifier, SCR function of short-circuit voltage
2. Battery overcharge protection and battery open-circuit protection
3. Charge current, supply voltage stability
4.Using SMT Surface mount technology, good temperature characteristics, high reliability
Production features.
Limit parameter
item | Limit parameter | Remark |
Storage Temperature | -40--85°C |
|
Working Temperature | -20--60°C |
|
Maximum regulator current | 10A | 25°C |
Performance parameter
item | performance parameter | Units | Remark |
Adjust the voltage | 14.5±0.5 | V | Battery is fully charged, 25 °C, rotation speed 5000r/min |
Battery open-circuit voltage | less than 15 | V | Battery Disconnect |
Xingtai Winway Import&Export Trading CO.,LTD is one of the special supplier of motorcycle part.
Our main product is Brake shoe, Shock absorber, Speedometer, Head light use for CG125, AX100, WY125, BAJAJ100/150/180, CD70, V50/80, PGT, GY150, GXT200, JAWA350.
Main market is Mid-east,West Africa,South America.East Europe.
Our aim is develop high quality products,offer competitive price, make fast shipment for customer's satisfaction.
